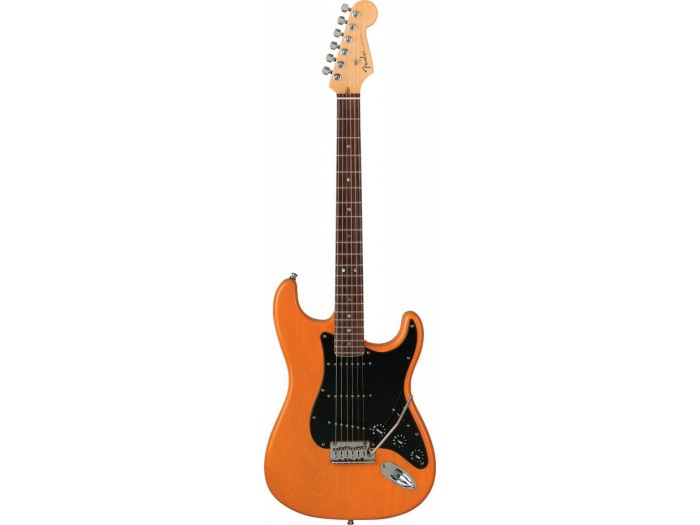

Ton. Tradicija. Inovacija. Fender-ov novi American Deluxe Stratocaster poseduje sve moderne karakteristike koje moderni gitaristi zahtevaju. Fingerboard sa kombinovanim radijusom (9.5 – 14 inča) koji omogućava bending žice bez muke na bilo kojoj poziciji na vratu, novi N3 noiseless magneti sa poboljšanim Stratocaster tonovima za karakterističan zvonak ton bez bruma. Prekonfigurisan S-1 switching system nudi još više opcija tonalnog spektra. Ostale karakteristike su specijalno uklopljene čivije na zaključavanje koje omogućavaju manji prelom žice i bolju stabilnost štima, Two-point sinhronizovani American Deluxe tremolo bridge sa pop-in ručicom, i stanjeno telo kod vrata.
| Model Name: |
American Deluxe Stratocaster® |
| Model Number: |
011-9000-(Color #) and 011-9002-(Color #) |
| Series: |
American Deluxe Series |
| Colors: |
(700) 3-Color Sunburst,
(720) Amber,
(723) Olympic Pearl,
(759) Tungsten,
(770) Sunset Metallic,
(Urethane Finish) |
| Body: |
Select Alder |
| Neck: |
Maple, Modern C Shape,
(Satin Urethane Finish) |
| Fingerboard: |
Rosewood (P/N 011-9000) or Maple (P/N 011-9002), 9.5 to 14 Compound Radius (241 mm to 355.6 mm) |
| No. of Frets: |
22 Medium Jumbo Frets |
| Pickups: |
3 New Noiseless™ N3 Strat® Pickups (Neck/Middle/Bridge) |
| Controls: |
Master Volume (with S-1™ Switch),
Tone 1. (Neck Pickup),
Tone 2. No-Load Tone Control (Middle and Bridge Pickups) |
| Pickup Switching: |
5-Position Blade and 2-Position Push/Push S-1™:
S-1 Switch Up (Off):
Position 1. Bridge Pickup
Position 2. Bridge and Middle Pickup in Parallel
Position 3. Middle Pickup
Position 4. Middle and Neck Pickup in Parallel
Position 5. Neck Pickup
S-1 Switch Down (On):
Position 1. Bridge, Middle and Neck Pickups in Series
Position 2. Bridge and Middle Pickup in Series
Position 3. Middle and Neck Pickup in Series
Position 4. Bridge and Neck Pickup Out-Of-Phase, and in Series with Special Tone Capacitor
Position 5. Bridge and Middle Pickup in Series and Out-Of-Phase, and in Parallel with Neck Pickup |
| Bridge: |
Fender Deluxe 2-Point Synchronized Tremolo with Pop in Arm |
| Machine Heads: |
Fender® Deluxe Staggered Cast/Sealed Locking Tuning Machines |
| Hardware: |
Chrome |
| Pickguard: |
3-Ply Mint Green on (700), (770),
4-Ply Brown Shell on (720, 723),
4-Ply Black on (759) |
| Scale Length: |
25.5 (648 mm) |
| Width at Nut: |
1.6875 (43 mm) |
| Unique Features: |
Copper Infused High Mass 100% Metal Bridge Block,
3 Tall, 3 Short Staggered Locking Tuning Machines,
S-1 Switching,
Aged Plastic Parts,
White Pearloid (Rosewood Fingerboard) or Black Pearloid (Maple Fingerboard) Dot Position Inlays,
Highly Detailed Fret and Nut Work,
4-Bolt Neck Attachment with Micro-Tilt™ Adjustment,
Bi-Flex Truss Rod System,
Parchment Knobs and Pickup Covers,
Rolled Fretboard Edges |
| Strings: |
Fender USA, Nickel Plated Steel,
Gauges: (.009, .011, .016, .024w, .032, .042) |
| Accessories: |
Fender/SKB® Case, Cable, Strap, Polishing Cloth |
| Case: |
High-Tech, Molded Rectangular SKB® Case |
| Introduced: |
3/2010 |
| Notice: |
Product Prices, Features, Specifications and Availability Are Subject To Change Without Notice |
