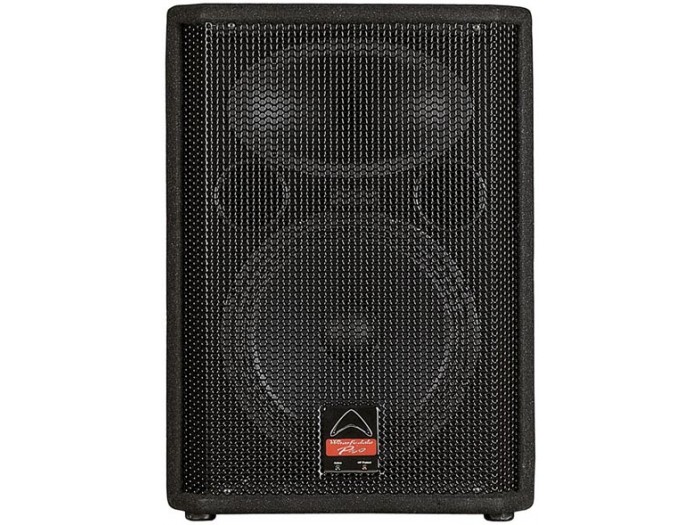

Wharfedale EVP-X12P

[klikni na sliku za uvećan prikaz]

Podeli

Ovaj proizvod trenutno nije dostupan.

pogledaj ostale Wharfedale proizvode

Odštampaj stranicu

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

Dvosistemska zvučna kutija sa 12" zvučnikom. Verzija sa integrisanim pojačalom, ekvilajzerska kontrola visokih i niskih tonova. Frekventni raspon od 55Hz do 20000Hz sa impedansom 8?. Trapezoidnog oblika, konstantne snage 300W, dimenzija 590x430x370 mm, težine 22.9 kg

The EVP-XP is the powered version of the EVP-X Series. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class. High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-XP series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

EVP-X12P

Powered version for EVP-X12
12" Two-way full range
55-18kHz frequency response (+/-3dB)
High/low EQ control, balance line output
2 x combined jack and XLR balanced input connectors
300W RMS / 500W peak amplifier power

H/D/W: 590 x 370 x 430 mm, 22.9kg

Karakteristike:

MODEL	EVP-X12P
GENERAL INFO
System type	12" 2-way powered
Frequency response +/- 3db	55 - 18kHz
LF DRIVER
Lf driver size mm / inches	1x12"
Lf voice coil size	51.6 /2"
HF SECTION
Hf voice coil size	44/1.75"
Hf diaphragm material	Titanium
Horn dispersion (H x V)	90 x 60
Hf exit size mm / inches	25 /1"
Hf horn shape	Elliptical
CROSSOVER SECTION
Crossover Frequency / Filter	N/A
PHYSICAL FEATURES
Finish	Black carpet
Stand adapter - BOTTOM	Yes
Stand adapter - TOP	No
Enclosure shape	Trapezoid
AMPLIFIER POWER
Continous RMS	300W
Peak (Wats)	500W
ProtectionType	Dynamic/AGC
Power on indicator	Green LED
System dynamic AGC	Orange LED
Phase switch	N/A
INPUT SENSITIVITY
Mic	5mV
Rca	0.5V
Line	0.775V
CONNECTORS
Input connectors A	Jack/XLR combo sw. bal. mic/line
Input connectors B	Jack/XLR combo / RCA line level
Line output type	XLR male balanced
Speaker level input	N/A
External speaker out	N/A
INPUT IMPEDANCE
Mic	470 OHMS
Line input A	47K
Line input B	10kohms
Main eq	HF Shelving +/-12dB@10KHZ LF Shelving +/-12dB @80Hz
DIMENSIONS & WEIGHT
Height ( mm / ins )	590
Width Front / Rear / mm / ins	430
Depth ( mm / ins )	370
Net weight ( kg / lbs )	22.9
Gross weight ( kg / lbs )	25.6
