Opis proizvoda:

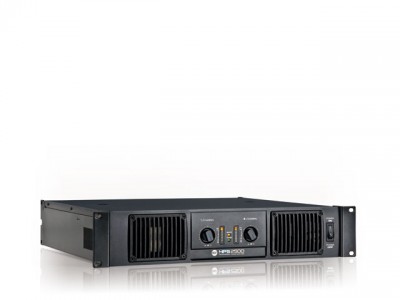

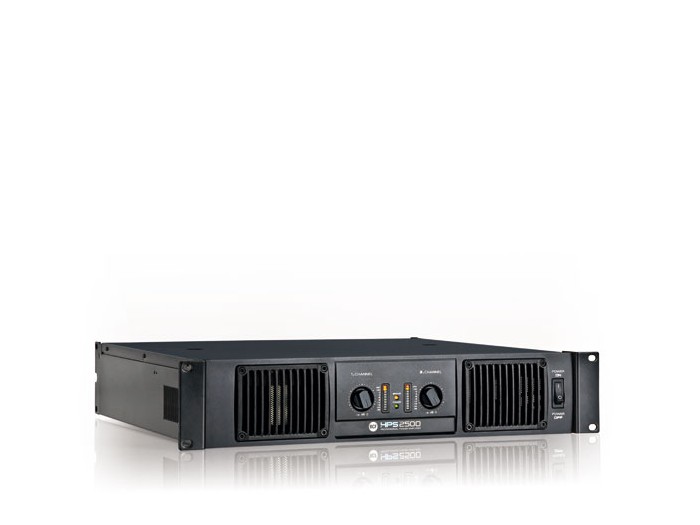

HPS 2500 is a 2 channel power amplifier that delivers up to 2 x 1400 W RMS @ 2 Ω (2800 W RMS bridged @ 4 Ω).
XLR inputs for patching in signals as well as Speakon ports for connecting speaker systems are provided for the maximum flexibility.
A forced air cooling system maintains a low operating temperature.
Karakteristike:
AMPLIFIER SPECIFICATIONS
- Power output stereo 2Ω:2 x 1400 W rms
- Power output stereo 4Ω:2 x 1100 W rms
- Power output stereo 8Ω:2 x 700 W rms
- Power output bridged 4Ω:2800 W rms
- Power output bridged 8Ω:2200 W rms
- Frequency Response +/- 0.25 dB:20 Hz ÷ 20 kHz
- Signal/noise rate:106 dB
- Damping factor:> 500
- Slew rate:50V/μS
INPUT SECTION
- Input connector:xlr
- Input sensitivity:1.4 dBm/V RMS
- Input impedance:20 kΩ (balanced), 10 kΩ (unbalanced) kΩ
SYSTEM PARAMETERS
- Cooling:Forced
- Voltage gain:32 – 26 dB
- Amplifier class:H
POWER REQUIREMENTS
- Operating voltage:220 ÷ 240 V (50 / 60 Hz) V ~ Hz
PHYSICAL SPECIFICATIONS
- Height:88/3.4 mm/inch
- Width:482/18.9 mm/inch
- Depth:420/16.5 mm/inch
- Net Weight:19/41,8 kg/lbs
