Sennheiser EW 135 P G2 **

The Sennheiser EW 135 P G2 system is ideal for video recording theatre performances and presentations.

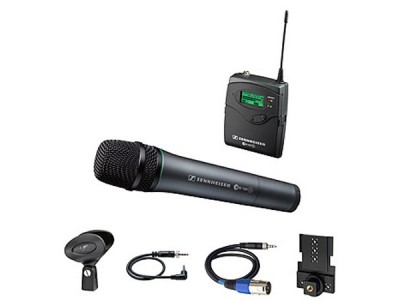

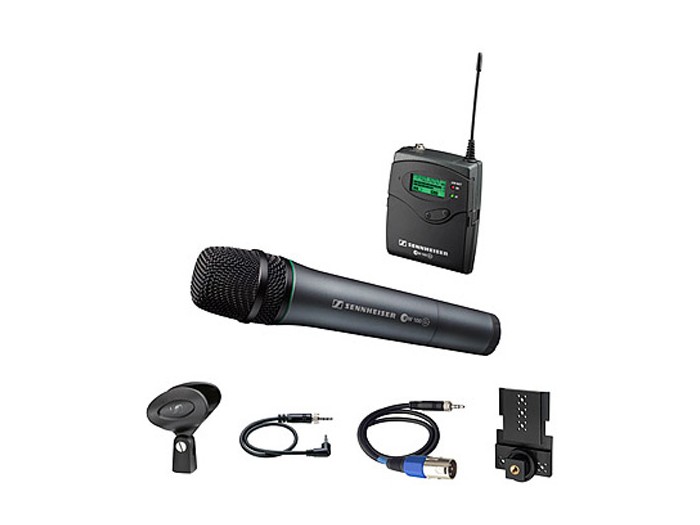

The system includes the SKM 135 G2 handheld transmitter and the EK 100 G2 camera receiver, featuring 9 frequency banks with 4 frequency presets each for direct channel selection and immediate use.

A great feature of the Evolution range is the ability to expand the systems uses and power. There are many additional microphones, bodypack cable convertors and signal boosters available for you to get the right microphone with the right power for your performance.

Importantly, this UHF, diversity system uses band E: Range 830 - 866 MHz, so you will always have a frequency available throughout Europe (except Greece) without requiring any licence.

• 1440 tunable UHF frequencies for interference-free reception
• Absolutely reliable transmission and extended range due to high RF output power
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Transmitter and receiver with rugged metal housings
• Receiver features user-friendly menu operation via backlit display
• Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter and receiver feature "Low Battery" indicators
• Mute function for the transmitter
• Wide range of accessories adapts the system to any requirement
• EK 100 G2 portable receiver, SKM 135 G2 handheld transmitter (dynamic, cardioid), MZQ 1 microphone clip, CL 1 jack cable, CL 100 XLR cable, camera adaptor, 4 x AA batteries and Operating instructions included with this set
• RF frequency Range E: 830 - 866 MHz. Frequencies between 863 to 865 MHz (ISM) are an ETS agreed licence exempt band. Use of any other frequency is likely to require a licence (country dependant)
• Transmission/receiving frequencies: 1440
• Presets: 4
• Switching bandwidth: 36
• Peak deviation: +/- 48 kHz
• Compander: HDX
• Frequency response (microphone): 40.....18000 Hz
• Signal-to-noise ratio: > 110 dB(A)
• THD, total harmonic distortion: < 0,9 %
• In compliance with: ETS 300422 , ETS 300445 , CE , FCC
• Audio-XLR connector: 3,5 mm jack
• Audio output level (unbalanced): +10 dBu max
• Dimensions (Receiver): 82 x 64 x 24 mm
• Weight (Receiver): 158 g
• RF output power: 30 mW
• Operating time (transmitter): > 8 h
• Dimensions (Transmitter): d=50mm, l=225mm
• Weight (Transmitter): 450 g
• Transducer; Microphone type: dynamic
• AF sensitivity: 1,5 mV/Pa
• Sound pressure level (SPL): 150 dB(SPL) max.
• Pick-up pattern: Cardioid
