Naziv proizvoda

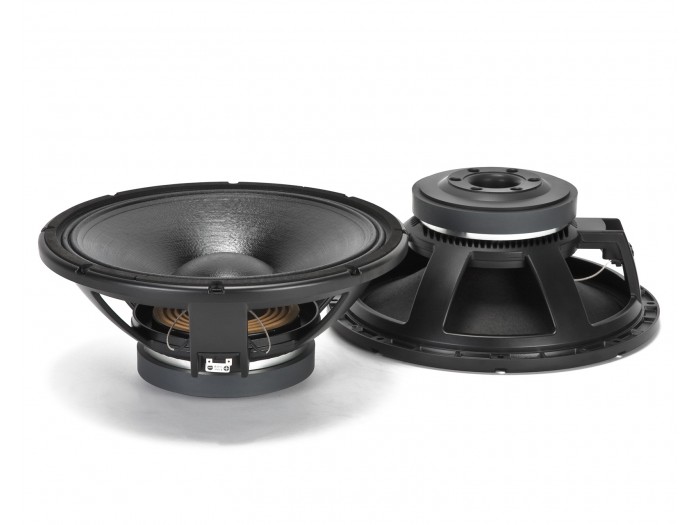

RCF MB15N351

RCF MB15N351
[klikni na sliku za uvećan prikaz]

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

 The MB15N351 is designed to provide an excellent frequency response linearity with very low distortion.

A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3,5” voice coil design provides a very high power handling, especially recommended in comparison to a standard 3” voice coil. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.



  • 3.5-inch, fiberglass inside/outside copper voice coil
  • 1400W continuous program power handling
  • 99 dB Sensitivity
  • 46 Hz – 2.5 kHz Frequency range
  • Dual Forced Hyperventing System
  • Dual spider design with silicon based dampening control
  • M-roll surround and corrugated straight cone geometry



Karakteristike:



  • Nominal Diameter: 380 / 15 mm/inch
  • Rated Impedance: 8 Ω
  • Program Power: 1400 W AES
  • Power handling capacity: 700 W AES
  • Sensitivity: 99 dB
  • Frequency Range: 46 Hz ÷ 2500 Hz
  • Effective Piston Diameter: 330/13 mm/inch
  • Max Excursion Before Damage (peak to peak): 40 / 1.57 mm/inch
  • Minimum Impedance: 6.5 Ω
  • Voice Coil Diameter: 87 / 3.4 mm/inch
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 19 / 0.74 mm/inch
  • Number of layers: 2
  • Kind of layer: inside / outside
  • Top Plate Thickness: 10 / 0.39 mm/inch
  • Cone Material: No pressed pulp
  • Cone Design: Straight
  • Surround Material: Polycotton
  • Surround Design: M-roll
Thiele/Small Parameters
  • Resonance frequency: 46 Hz
  • DC resistance: 5.4Ω
  • Mechanical factor: 6.7
  • Electrical factor: 0.33
  • Total factor: 0.31
  • BL Factor: 22.8 T · m
  • Effective Moving Mass: 106 g
  • Equivalent Cas air load: 114 liters
  • Effettive piston area: 0.086
  • Max. linear excursion (mathematical): 5.5 mm
  • Voice - coil inductance @ 1kHz: 0.86 mH
  • Half-space efficiency: 3.20%
Mounting information
  • Overall Diameter: 393 / 15.5 mm/inch
  • Bolt Circle Diameter: 371-376 / 14.6-14.8 mm/inch
  • Bolt Hole Diameter: 6.5 / 0.3 mm/inch
  • Front Mount Baffle Cut-out: 354 / 13.9 mm/inch
  • Rear Mount Baffle Cut-out: 354 / 13.9 mm/inch
  • Depth: 151 / 5.94 mm/inch
  • Volume occupied by the driver: 4.5 / 0.153 liters/ft³
  • Net Weight: 8.2 / 18.04 kg/lbs
Shipping information
  • Shipping weight: 9 / 19.8 kg/lbs
