Naziv proizvoda

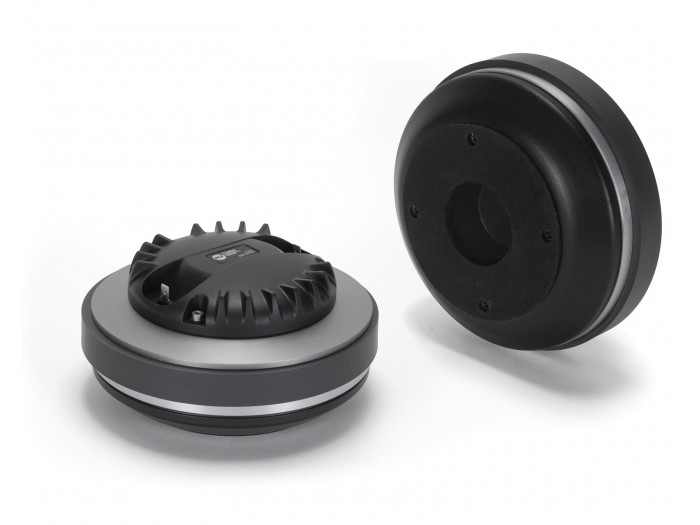

RCF CD 850 2.0

RCF CD 850 2.0
[klikni na sliku za uvećan prikaz]
Naša cena:
19.990,00 DIN
U cenu je uračunat iznos PDV-a.

Cena je za Komad

Korpa

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

 The CD850 2.0 is a high performance 3.0-inch diaphragm compression driver with a 2 inch exit throat featuring several state of the art technologies.

The diaphragm are precision formed from pure titanium. The suspension is based on a vented and damped design in order to provide low distorsion. Voice coil assembly is designed using high temperature kapton former.



  • 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
  • 220W continuous program power handling
  • Frequency range: 500Hz - 20kHz
  • 3-slot optimized geometry phase plug
  • Ceramic Magnet Assembly
  • Copper inductance ring for extended response
  • Vented, damped, low distortion suspension system



Karakteristike:



  • Exit Throat Diameter: 50 / 2.0 mm/inch
  • Rated Impedance: 8 Ω
  • Power handling capacity continuous program1: 220 W AES
  • Power handling capacity AES2: 110 W AES
  • Sensitivity: 109 dB
  • Frequency Range: 500 Hz ÷ 20000 Hz
  • Diaphragm Material: Pure titanium
  • Suspension Material: Polyester
  • Suspension Design: Flat
  • Minimum Impedance: (at 3.5kHz) 8.5 Ω
  • Voice Coil Diameter: 74.4 / 3.0 mm/inch
  • Voice Coil Material: Edgewound aluminium
  • Voice Coil Former Design: Straight kapton
  • Number of layers: 1 - outside
  • BL Factor: 12.3 T · m
  • Flux Density: 1.9 T
  • Phase Plug Design: 3 slots
  • Phase Plug Material: Composite
  • Magnetics: Ceramic
  • Voice Coil Demodulation: Copper ring
Mounting information
  • Overall diameter: 180 / 7.1 mm/inch
  • Overall height: 88 / 3.5 mm/inch
  • Mounting 4 × 5 mm holes at 90°: 101.6 / 4.0 mm/inch
  • Net weight: 5.5 / 12.1 kg/lbs
Shipping information
  • Shipping weight: 6.0 / 13.2 kg/lbs
