Naziv proizvoda

RCF N 850

RCF N 850
[klikni na sliku za uvećan prikaz]
Naša cena:
19.990,00 DIN
U cenu je uračunat iznos PDV-a.

Cena je za Komad

Korpa

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

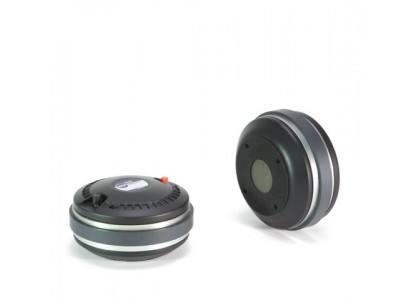

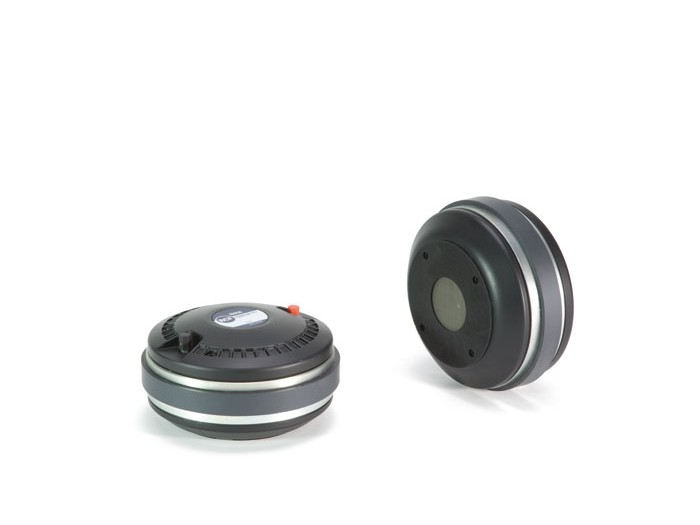

 The N850 is a high quality 3-inch diaphragm compression driver with a 2-inch exit throat.
The diaphragm is precision formed from 0.05mm thick pure titanium.
The suspension is based on Mylar vented design.
The front aluminium adaptor guarantee a very smooth transition from the phase plug to 2-inch output interface.



  • 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
  • 180W continuous program power handling
  • Frequency range: 500Hz - 20kHz
  • 3-slot optimized geometry phase plug
  • Aluminium rear cover and front adaptor
  • Copper inductance ring for extended response
  • Vented suspension system



Karakteristike:



  • Exit Throat Diameter: 50.8 / 2.0 mm/inch
  • Rated Impedance: 8 Ω
  • Power handling capacity continuous program1: 180 W AES
  • Power handling capacity AES2: 90 W AES
  • Sensitivity: 109 dB
  • Frequency Range: 500 Hz ÷ 20000 Hz
  • Diaphragm Material: Pure titanium
  • Suspension Material: Mylar
  • Suspension Design: Radial
  • Minimum Impedance: (at 3.5kHz) 8.8 Ω
  • Voice Coil Diameter: 74.4 / 3.0 mm/inch
  • Voice Coil Material: Edgewound aluminium
  • Voice Coil Former Design: Straight kapton
  • Number of layers: 1 - outside
  • BL Factor: 12 T · m
  • Flux Density: 1.85 T
  • Phase Plug Design: 3 slots
  • Phase Plug Material: Composite
  • Magnetics: Ceramic
  • Voice Coil Demodulation: Copper ring
Mounting information
  • Overall diameter: 180 / 7.1 mm/inch
  • Overall height: 95 / 7.3 mm/inch
  • Mounting 4 × 5 mm holes at 90°: 101.6 / 4.0 mm/inch
  • Net weight: 4.7 / 10.3 kg/lbs
Shipping information
  • Package height: 11.5 / 4.5 mm/inch
  • Package width: 22 / 8.7 mm/inch
  • Package depth: 21 / 8.3 mm/inch
  • Shipping weight: 5.0 / 11.0 kg/lbs
