Naziv proizvoda

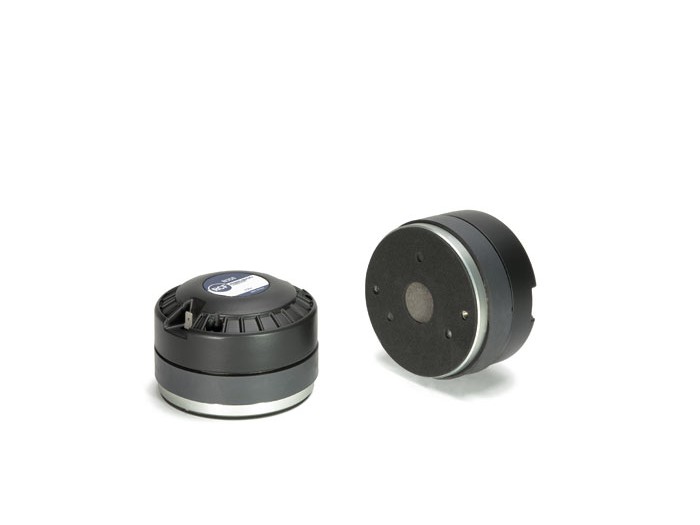

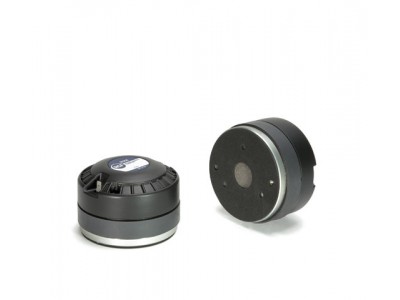

RCF N 350

RCF N 350
[klikni na sliku za uvećan prikaz]
Naša cena:
8.528,00 DIN
U cenu je uračunat iznos PDV-a.

Cena je za Komad

Korpa

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

 The N350 features 1.75-inch diaphragm with a 1-inch exit throat.
The diaphragm and suspension are precision formed from 0.125mm thick Mylar film.
Voice coil assembly is designed using high temperature kapton former, rectangular profile copper clad aluminium wire assembled using advanced specially formulated adhesives.



  • 1.75-inch Diaphragm, 1-inch Exit Throat
  • 80W continuous program power handling
  • Frequency range: 1500Hz - 20kHz
  • 2-slot optimized geometry phase plug
  • Aluminium rear cover
  • Vented suspesion system



Karakteristike:



  • Exit Throat Diameter: 25.4 / 1.0 mm/inch
  • Rated Impedance: 8 Ω
  • Power handling capacity continuous program1: 80 W AES
  • Power handling capacity AES2: 40 W AES
  • Sensitivity: 107 dB
  • Frequency Range: 1500 Hz ÷ 20000 Hz
  • Diaphragm Material: Mylar
  • Suspension Material: Mylar
  • Suspension Design: Radial
  • Minimum Impedance: (at 3.5kHz) 8.3 Ω
  • Voice Coil Diameter: 44.4 / 1.75 mm/inch
  • Voice Coil Material: Edgewound aluminium
  • Voice Coil Former Design: Straight kapton
  • Number of layers: 1 - outside
  • BL Factor: 5.9 T · m
  • Flux Density: 1.4 T
  • Phase Plug Design: 2 slots
  • Phase Plug Material: Composite
  • Magnetics: Ceramic
Mounting information
  • Overall diameter: 102 / 4.0 mm/inch
  • Overall height: 60 / 2.4 mm/inch
  • Mounting 4 × 5 mm holes at 90°: 76.2 / 3.0 mm/inch
  • Net weight: 1.4 / 3.1 kg/lbs
Shipping information
  • Package height: 8.5 / 3.3 mm/inch
  • Package width: 16 / 6.3 mm/inch
  • Package depth: 15.5 / 6.1 mm/inch
  • Shipping weight: 1.7 / 3.7 kg/lbs
