Naziv proizvoda

RCF ND 1411M

RCF ND 1411M
[klikni na sliku za uvećan prikaz]
Naša cena:
6.986,00 DIN
U cenu je uračunat iznos PDV-a.

Cena je za Komad

Korpa

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

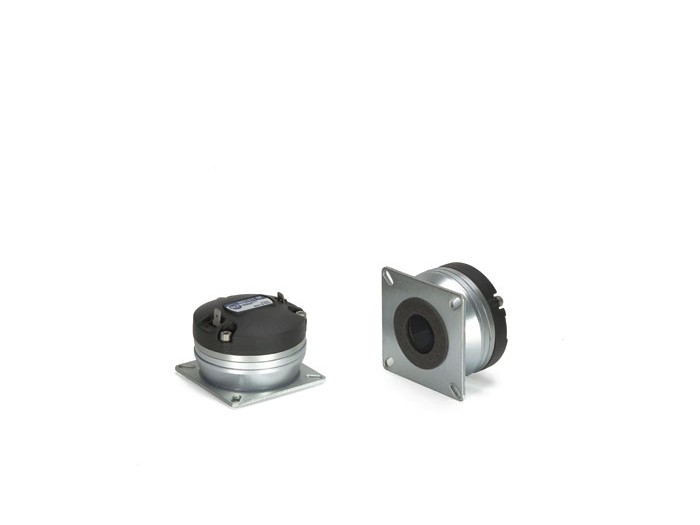

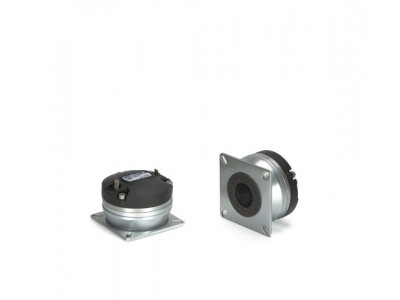

The ND1411-M is a high performance 1.5-inch diaphragm compression driver with a 1-inch exit throat featuring a single pieces, low compression, radial phase plug.
The diaphragm and suspension are precision formed from 0.1mm thick Mylar.
The ND1411-M is a very compact size, versatile driver for professional applications.



  • 1.5-inch Diaphragm, 1-inch Exit Throat
  • 50W continuous program power handling
  • Frequency range: 1500Hz - 20kHz
  • Optimized geometry radial phase plug
  • Very compact size for array applications
  • Neodymium magnet assembly
  • High power handling in only 70mm overall diameter



Karakteristike:



  • Exit Throat Diameter: 25.4 / 1.0 mm/inch
  • Rated Impedance: 8 Ω
  • Power handling capacity continuous program1: 50 W AES
  • Power handling capacity AES2: 25 W AES
  • Sensitivity: 109 dB
  • Frequency Range: 1500 Hz ÷ 20000 Hz
  • Diaphragm Material: Mylar
  • Suspension Material: Mylar
  • Suspension Design: Radial
  • Minimum Impedance: (at 6kHz) 7 Ω
  • Voice Coil Diameter: 35.5 / 1.5 mm/inch
  • Voice Coil Material: Edgewound aluminium
  • Voice Coil Former Design: Straight kapton
  • Number of layers: 1 - outside
  • BL Factor: 4.4 T · m
  • Flux Density: 1.75 T
  • Phase Plug Design: 10 radial slots
  • Phase Plug Material: Composite
  • Magnetics: Neodymium
Mounting information
  • Overall diameter: 70 / 2.8 mm/inch
  • Overall height: 51 / 2.0 mm/inch
  • Mounting 4 × 5 mm holes at 90°: 76.2 / 3.0 mm/inch
  • Net weight: 0.8 / 1.8 kg/lbs
Shipping information
  • Package height: 8.5 / 3.3 mm/inch
  • Package width: 16 / 6.3 mm/inch
  • Package depth: 16 / 6.3 mm/inch
  • Shipping weight: 1.0 / 2.2 kg/lbs
