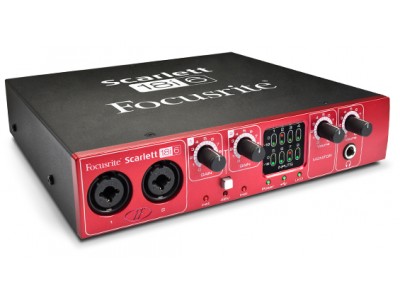

The Focusrite Scarlett 18i6 is an 18 in / 6 out USB 2.0 audio interface designed to make home multitrack recording a breeze. Alongside two award-winning Focusrite preamps, six high-quality analogue inputs allow you to simultaneously record guitar, bass, vocals and keys. You don’t need to stop there either – pop in the ADAT optical cable from an outboard eight-channel mic pre unit such as the Focusrite OctoPre MkII and you can track the drums at the same time.

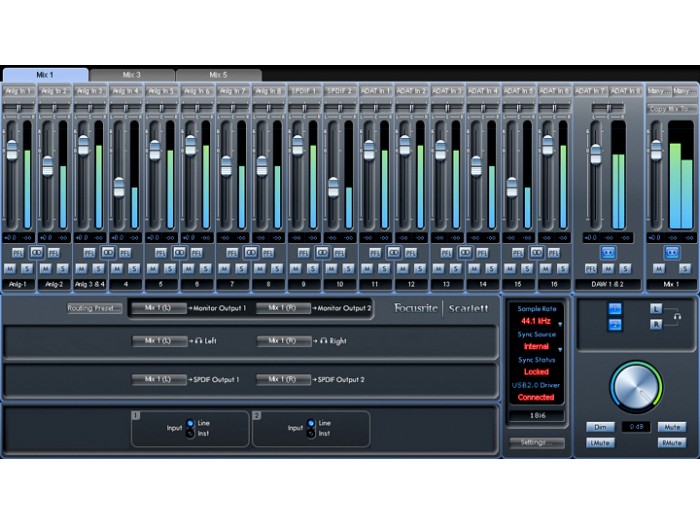

Included with the Scarlett 18i6 is Scarlett MixControl, an 18 x 6 DSP mixer. Offering a superb level of flexibility, the MixControl software enables you to create six separate mixes with ultra-low-latency. Route any combination of input signals and sequencer outputs to any of the Scarlett 18i6 outputs. Intuitive one-click configurations help you track, monitor and mix as quickly as possible.
Scarlett 18i6 comes with all of the additional tools needed to start making music straight away.
Scarlett VST/AU/RTAS Plug-in Suite comes in the box, adding Focusrite compression, reverb, gating and EQ to your recording system.
Focusrite’s established Xcite+ bundle is also included. The bundle features Ableton Live Lite (for all your production, performance and compositional needs), Novation’s Bass Station soft synth and over 1 gig of royalty-free samples from Loopmasters.
Scarlett 18i6’s two award-winning Focusrite preamps ensure low noise and distortion, whilst cutting-edge digital conversion captures your audio with pristine quality. 16 additional inputs allow you to capture inspired takes, without having to constantly re-patch your studio. Combined with the very latest in USB interfacing technology, excellent routing flexibility and rock-solid driver stability, the Scarlett 18i6 is the heart of the modern recording studio.
Microphone Inputs 1-2
- Frequency Response: 20Hz - 20kHz +/- 0.2 dB
- Gain Range: +13dB to +60dB
- THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
- Noise EIN: 124dB analogue to digital (measured at 60dB of gain with 150Ω termination (20Hz/22kHz bandpass filter)
- Input Impedance: 2kΩ
DIGITAL PERFORMANCE
- A/D Dynamic Range > 110dB (A-weighted), all analogue inputs
- D/A Dynamic Range > 106dB (A-weighted), all analogue outputs
- Clock Sources:
- Internal Clock
- Sync to Word Clock on SPDIF Input (RCA)
- Sync to Word Clock on ADAT Optical Input
- Clock jitter < 500 picoseconds
- Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- 18 input channels to computer: Analogue (8), SPDIF (2), ADAT (8)
- 6 output channels from computer: DAW (6)
- 6 output channels from Scarlett 18i6: Analogue (4), SPDIF (2)
- 18 input by 6 output mixer
Line Inputs (Inputs 1-2)
- Frequency Response: 20Hz - 20kHz +/- 0.2dB
- Gain Range: -10dB to +36dB
- THD+N: 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
- Noise: -90dBu (22Hz/22kHz bandpass filter)
- Input Impedance: >10kΩ
Line Inputs 3-8
- Frequency Response: 20Hz - 20kHz +/- 0.2 dB
- Input Level: +10dBu for 0dBFS (balanced inputs)
- THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
- Noise: -100dBu (22Hz/22kHz bandpass filter)
- Input Impedance: >10kΩ
Instrument Inputs (Inputs 1 and 2)
- Frequency Response: 20Hz - 20kHz +/- 0.1dB
- Gain Range: +13dB to +60dB
- THD+N: 0.004% (measured with 0dBu input and 20Hz/22kHz bandpass filter)
- Noise: -87dBu (20Hz/22kHz bandpass filter)
Analogue Audio Outputs (Outputs 1-2)
- 2 Electronically Balanced Outputs
- Maximum Output Level (0dBFS): +16dBu
- Frequency Response: 20Hz - 20kHz +/- 0.2 dB
- THD+N: 0.001% (0dBFS input, 20Hz/22kHz bandpass filter)
Crosstalk (Channel Isolation)
- Any input to input: > 100dB
- Any output to output: > 100dB
- Any input to output: > 100dB
Weight and Dimensions
- Dimensions (W x H x D):
- Unboxed: approx. 215mm x 45mm x 220mm (8.5 x 1.8 x 8.7 inches)
- Boxed: approx. 335mm x 275mm x 125mm (13.2 x 10.8 x 4.9 inches)
- Weights
- Net Weight: 1.5kg / 3.3lbs
- Gross Weight: approx. 2.39kg / 5.3lbs
Connectivity
CHANNELS AT A GLANCE
IN
No. FormatConnectorDetails
2Mic/Line/InstCombo XLRInc. 2 instrument inputs

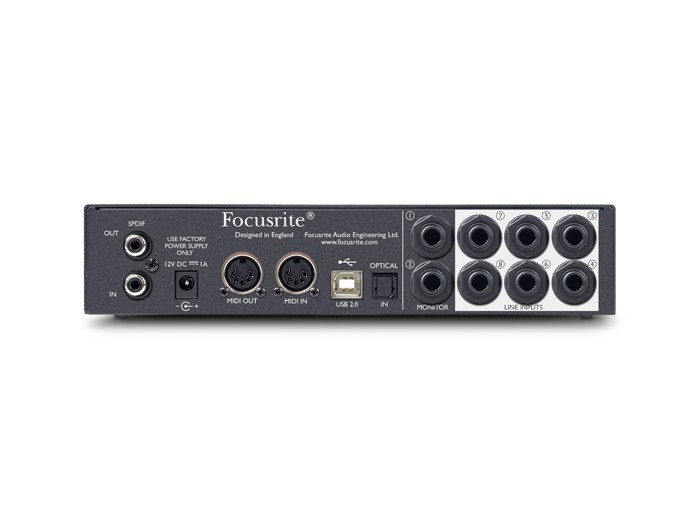

6Line analogue¼” TRS JackOn rear panel
2S/PDIFRCA phonoOn rear panel
8ADAT OpticalTOSLINKOn rear panel
16MIDI5 pin DIN connectorProvides 16 channels of MIDI
OUT
No. FormatConnectorDetails
2Line analogue¼” TRS JackOn rear panel
2S/PDIFRCA phonoOn rear panel
2Stereo headphones¼” TRS JackIndependent of line outputs
16MIDI5 pin DIN connectorProvides 16 channels of MIDI
Analogue Channel Inputs (Inputs 1-8)
- 2 Mic XLR Combo (channels 1-2) on front panel
- 6 Line ¼” TRS (channels 3-8) on rear panel
- Automatic switching between Mic / Line (channels 1-2)
- Switching between Line / Instrument Inputs (channels 1-2) via Scarlett Mix Control Application
Digital Channel Inputs (Inputs 9-18) 44.1 - 96kHz
- Stereo S/PDIF input on RCA
- 8 optical ADAT channels (4 channels at 88.2 / 96kHz)
Analogue Audio Outputs (Outputs 1-4)
- 2 ¼” TRS Jacks
- Output Level control (analogue)
- Separate Stereo Headphones Mix (outputs 3/4) on ¼” TRS with independent analogue volume control
Digital Channel Outputs (Outputs 5-6) 44.1 - 96kHz
- Stereo S/PDIF Output on RCA
Other I/O
- 1 USB Type “B” Connector
- 2 Standard 5-pin DIN MIDI connectors: In and Out
- DC Power Input Connector (for use with supplied universal input power supply)

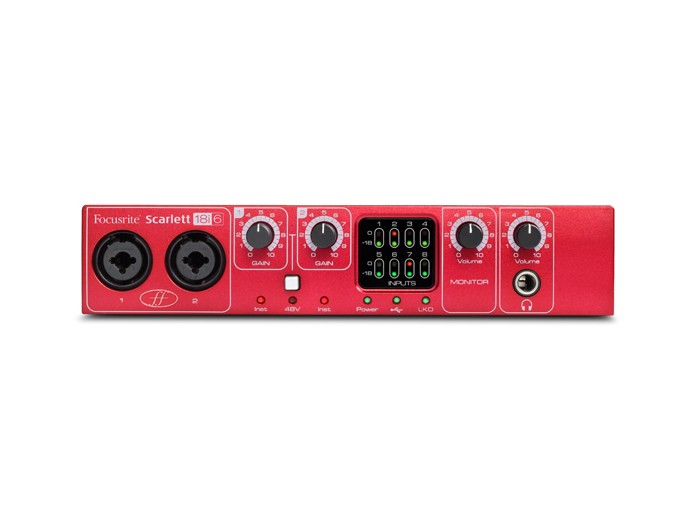

Front Panel Indicators
- 8 2-segment input meters, -18 and 0dBFS
- “LKD” Lock Indicator
- “USB” Host Connected Indicator
- Instrument input source selection LED for channels 1 and 2
- Phantom Power (48V) switch and LED for inputs 1 and 2
Compatibility
MAC
OS X 10.6.5 Snow Leopard
WINDOWS
Windows 7 (All versions), Windows Vista (32bit only), or Windows XP SP3 (32bit only)
