Yamaha SB-7X

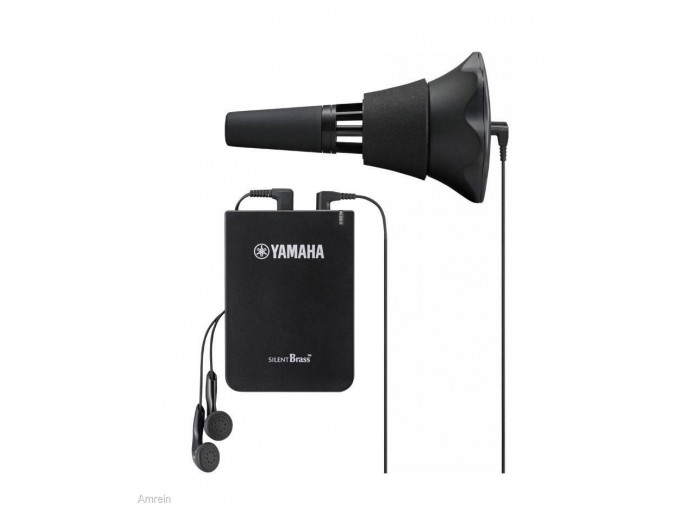

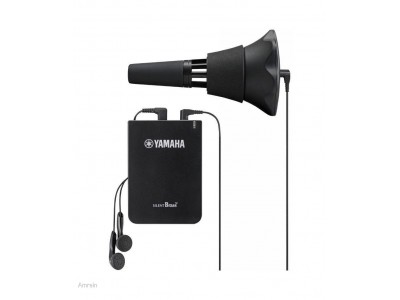

You want to play when and as you like, without being confined to time or place… Yamaha’s next generation SILENT Brass™ makes it happen. The new SILENT Brass™ consists of a smaller, lighter, freer blowing Pickup Mute™, and the Personal Studio™, which features Yamaha’s exclusive Brass Resonance Modeling™. Used together, the two deliver the natural acoustic tone you hear when playing without a mute, making it feel as though you are playing mute free.

Pickup Mute™

Model         PM7X

Dimensions (Diameter x Length)                     82 x 139mm (3-1/4" x 5-1/2")

Weight       70g (2.5 oz.)

Internal Microphone                        Electric condenser microphone

Pickup Output Jack    Mini phone jack

Nominal Level               -25dB～-35dB

Brass Resonance Modeling™       Yes

Personal Studio™

Model         STX

Dimensions (W x D x H)                  70 x 20 x 98mm

Weight       69g (2.4 oz) without batteries

Jacks and Terminals   MUTE IN, AUX IN, PHONES

Control       VOL. (volume), Reverb type, Power ON/OFF

Brass Resonance Modeling™       Yes (It behaves correctly only when compatible Pickup Mute™ is connected to Personal Studio™.)

Power Supply                AA alkaline or nickel-metal hydride batteries x 2 (3V DC)

Accessories

Included Accessories                        Cable, Stereo Earphones, Owner’s Manual
