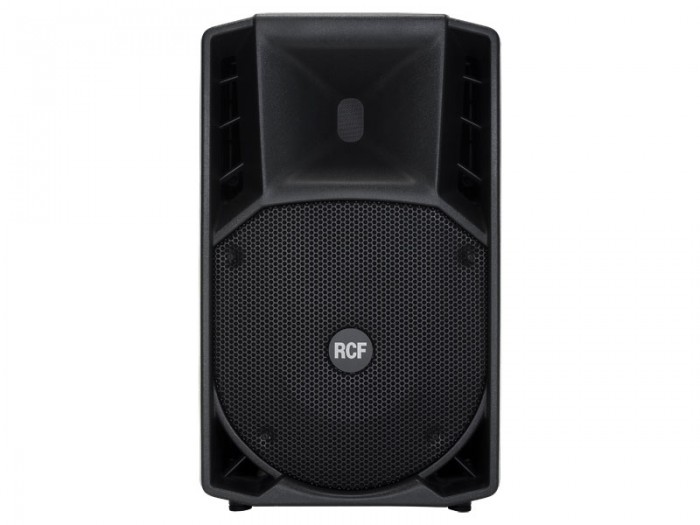

RCF ART 712A MKII

You need to amplify some speech, recorded music and finish the show with a live set?

ART 712-A is the answer: a multi purpose speaker that represents the best choice for situations in which a full frequency range with punchy bass and high defi nition is needed.

The ART 712-A is a very versatile speaker that can be easily used also for monitoring applications.

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB: 650 Hz ÷ 20000 Hz

Max SPL: 129 dB

Horizontal coverage angle: 90°

Vertical coverage angle: 60°

Compression Driver: 1", 1.75" v.c.

Woofer: 12", 3" v.c.

INPUT/OUTPUT SECTION

Input signal: bal / unbal

Input connectors: Combo xlr-jack

Output connectors: xlr

Input sensitivity: -2 dBu / +4 dBu

PROCESSOR SECTION

Crossover frequencies: 1700 Hz

Protections: Thermal, rms

Limiter: Soft limiter

Controls: Volume, EQ shape

AMPLIFIER SPECIFICATIONS

Total power: 1400 W PEAK

   High frequencies: 400 W PEAK

   Low frequencies: 1000 W PEAK

Total power: 700 W RMS

   High frequencies: 200 W RMS

   Low frequencies: 500 W RMS

Cooling: Convection / forced

Connections: VDE connector in

CABINET

Cabinet Material: Composite PP

Hardware: 2xM10 flying p .

Handles: 2 side, 1 top

Pole Mount/Cap: Yes

Colour: Black
