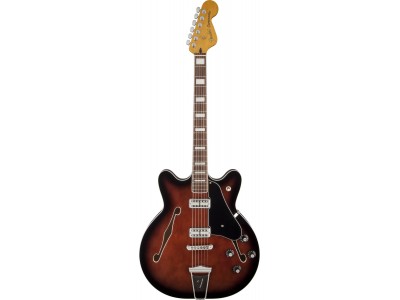

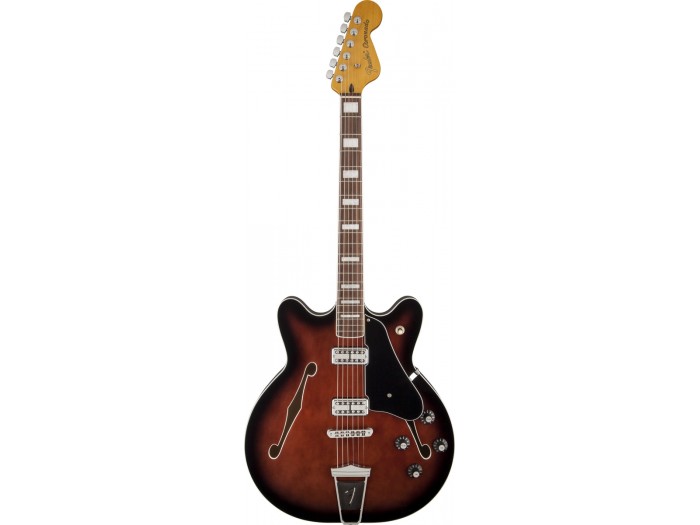

Fender Legacy Coronado. Rosewood Fingerboard. Black Cherry Burst*

The Coronado guitar is back, with greater sound, build and beauty than ever for the guitarist who appreciates a different guitar with a special history. In the mid-to-late 1960s, the Coronado family was Fender’s first foray into the hollow-body electric guitar world. Now the Coronado name and style returns to Fender as an utterly cool new guitar in the Modern Player family, with stunning looks, tone and features.

The Fender Coronado guitar’s thin semi-hollow maple body has an alder center-block and bound top and back, with stylish bound f holes. Its “C”-shaped maple neck has a 9.5”-radius white-bound rosewood fingerboard with 21 medium jumbo frets and elegant white pearloid block inlays. Other distinctive features include dual Fideli’Tron™ humbucking pickups with three-way toggle switching, three-ply black pickguard, four skirted “amp”-style control knobs (volume and tone for each pickup) and an Adjusto-Matic™ bridge with floating “F” trapeze tailpiece.

Body

Body Material:        Laminated Maple with Alder Center-Block

Body Finish:            Gloss Polyester

Body Shape:            Other

Neck

Neck Material:        Maple

Neck Finish:            Gloss Polyester

Neck Shape:            "C" Shape

Scale Length:          25.5" (648 mm)

Fingerboard:           Rosewood

Fingerboard Radius:               9.5" (241 mm)

Number of Frets:    21

Fret Size: Medium Jumbo

String Nut:              Synthetic Bone

Nut Width:              1.650" (42 mm)

Position Inlays:        Pearloid Block

Neck Plate:              4-Bolt

Electronics

Bridge Pickup:         Fideli'Tron™ Humbucking

Neck Pickup:            Fideli'Tron™ Humbucking

Controls:  Volume 1. (Neck Pickup), Tone 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone 2. (Bridge Pickup)

Pickup Switching:    3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Pickup Configuration:              HH

Hardware

Bridge:    Pinned Adjusto-Matic™ with Floating "F" Trapeze Tailpiece

Hardware Finish:    Chrome

Tuning Machines:   Fender Standard Cast/Sealed

Pickguard:               3-Ply Black

Control Knobs:         Skirted Amp Knobs

Miscellaneous

Strings:    Fender® USA, NPS, (.009-.042 Gauges)

Unique Features:    Bound Top and Back, White Fingerboard Binding, Vintage-Style Skirted Control Knobs
