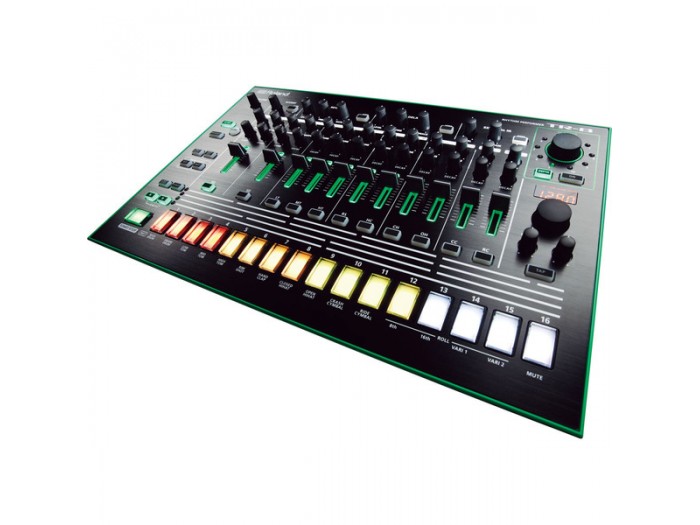

Roland TR-8

Authentic TR-808 and TR-909 experience in a modern, performance-ready instrument

The TR-8 is a performance rhythm machine that melds the legendary sound and vibe of the TR-808 and TR-909 with features and functions for the modern age. Genre-defining sounds, classic effects, unprecedented live pattern manipulation, and solid, intuitive performance controls. It’s the TR…evolved.

SPECIFICATIONS

User Drum Kits 16User Patterns 16Steps per 1 measure 1 – 16 steps x 2 (Variation A/B)

Tempo 40 – 300Instruments & Controls BASS DRUM: LEVEL, TUNE, ATTACK, COMP, DECAY, INST SELECT

SNARE DRUM: LEVEL, TUNE, SNAPPY, COMP, DECAY, INST SELECT

LOW TOM, MID TOM, HIGH TOM, RIM SHOT, HAND CLAP, CLOSED HIHAT, OPEN HIHAT, CRASH CYMBAL, RIDE CYMBAL: LEVEL, TUNE, DECAY, INST SELECT

Effects and Controls ACCENT: LEVEL, STEP

REVERB: LEVEL, TIME, GATE, STEP

DELAY: LEVEL, TIME, FEEDBACK, STEP

EXTERNAL IN: LEVEL, SIDE CHAIN, STEP

Mode TR-REC, PATTERN SELECT, INST PLAY, INST REC, DRUM KIT SEL, DRUM INST SELControllers VOLUME knob

SCATTER knob

TEMPO knob

FINE knob

SHUFFLE knob

PADS: 16

MODE buttons: 6

CLEAR button

VARIATION buttons: A, B

SCALE button

LAST STEP button

START/STOP button

SCATTER ON button

SCATTER DEPTH button

TAP button

Power Switch (Rear)Display 7 segments, 4 characters (LED)Effects REVERB, DELAY, SIDE CHAINScatter Types: 10Nominal Input Level -10 dBuInput Impedance 100 k ohmsNominal Output Level -10/+4 dBu (Selectable)Output Impedance MIX OUT, ASSIGNABLE OUT: 1 k ohm

PHONES: 130 ohmsConnectors PHONES jack: 1/4-inch stereo phone type

MIX OUT (L/MONO, R) jacks: 1/4-inch phone type

ASSIGNABLE OUT (A, B) jacks: 1/4-inch phone type

EXTERNAL IN (L, R) jacks: 1/4-inch phone type

USB port: USB type B (Audio, MIDI)

DC IN jackUSB Audio, MIDIPower Supply AC adaptorCurrent Draw 1,000 mAAccessories Owner's manual

Leaflet "USING THE UNIT SAFELY"

AC adaptor

SIZE AND WEIGHT

Width (W)400 mm15-3/4 inchesDepth (D)260 mm10-1/4 inchesHeight (H)65 mm2-9/16 inchesWeight 1.9 kg4 lbs. 4 oz.
