Sounds with character and loads of controls in a PLUG-OUT capable synthesizer
Back in the 1970s, Roland launched the SYSTEM 100, SYSTEM 100M, and the now almost mythical SYSTEM 700. These modular and semi-modular synthesizers are heralded to this day for their flexibility and character of sound. In the spirit of its predecessors, the SYSTEM-1 breaks new ground with remarkable flexibility and access to a vast palette of tones with the bold, unmistakable character associated with Roland synthesizers for nearly four decades.
- Four oscillators for buckets of fat synth tones
- Oscillator colors create continuous waveform changes from simple to complex
- All parameters can be controlled with physical knobs and sliders with LED indicators
- Advanced arpeggiator with Scatter function
- Scatter jog dial offers 10 different phrase variations with dynamic, real-time control over 10 stages of depth
- -12 dB and -24 dB filter types with independent high-pass filters
- Tone knob for easy tonal balancing
- Crusher knob for modern edge
- Integrated delay and reverb effects
- Tempo syncing for LFO and delay
- Innovative thin keyboard with 25 normal-sized keys
- Comfortable to play, yet the most compact Roland synth ever
KEYBOARD
Keyboard 25 keys (without velocity)
SOUND GENERATOR
Maximum Polyphony 4 voices (SYSTEM-1 Mode)User Memory 8Structure Elements (SYSTEM-1 Mode) [Oscillator Section]
Wave Form: SAW､SQUARE､TRIANGLE､SAW2､SQUARE2､TRIANGLE2
Knobs: COLOR､MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV､SUB OSC), OCTAVE, TUNE
Envelope: ATTACK Time, DECAY Time, ENVELOPE Depth
Modulation: CROSS Modulator, RING Modulator, Oscillator SYNC
Sub Oscillator: -1oct/-2oct
Noise: WHITE Noise/PINK Noise
Key Mode: MONO/UNISON/POLY
[Filter Section]
Type: LPF (-12dB/-24dB), HPF
Knobs: LPF CUTOFF, RESONANCE, HPF CUTOFF, KEY Follow
Envelope: ATTACK Time, DECAY Time, SUSTINE Level, RELEASE Time, ENVELOPE Depth
[Amplifier Section]
Envelope: ATTACK Time, DECAY Time, SUSTINE Level, RELEASE Time
[LFO Section]
Waveform: SINE, TRIANGLE, SAW, SQUARE, Sample&Hold, Random
Knobs: FADE TIME, RATE, PITCH, FILTER, AMP
Controller: LFO KEY TRIGER, TEMPO SYNC
[Mixer Section]
Level: OSC 1, OCS 2, SUB OSC, NOISE
[Effecter Section]
TONE, CRUSHER, REVERB, DELAY, DELAY TIMEStructure Elements (PLUG-OUT Mode) Depend on PLUG-OUT software
OTHER
ARPEGGIO Type: 6
Step: 6SCATTER Type: 10
Depth: 10Controllers VOLUME knob
TEMPO knob
PORTAMENTO knob
LEGATO button
PITCH BEND/SCATTER jog dial
SCATTER TYPE dial
KEY HOLD button
OCTAVE UP/DOWN buttons
MOD button

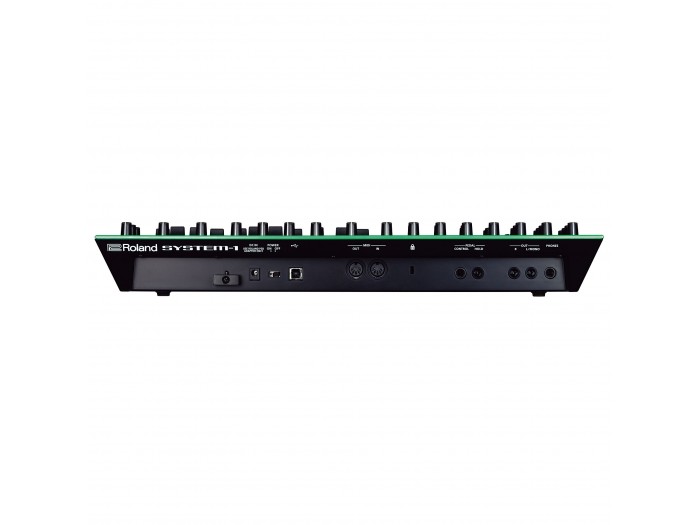

Power Switch (Rear)Connectors PHONES jack: Stereo 1/4-inch phone type
OUT (L/MONO, R) jacks: 1/4-inch phone type
PEDAL (HOLD) jack: 1/4-inch phone type
PEDAL (CONTROL) jack: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors
USB port: USB type B (Audio/MIDI)
DC IN jackPower Supply AC AdaptorCurrent draw 850 mAAccessories Owner's manual
AC adaptor
Leaflet "USING THE UNIT SAFELY"Options (sold separately) Pedal switch: DP Series, Footswitch: BOSS FS-5U
Expression pedal: EV-5
SIZE AND WEIGHT
Width (W)472 mm18-5/8 inches Depth (D)283 mm11-3/16 inches Height (H)70 mm2-13/16 inches Weight 2.4 kg5 lbs. 5 oz.
