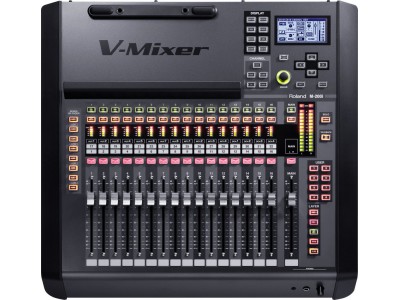

Roland M-200i

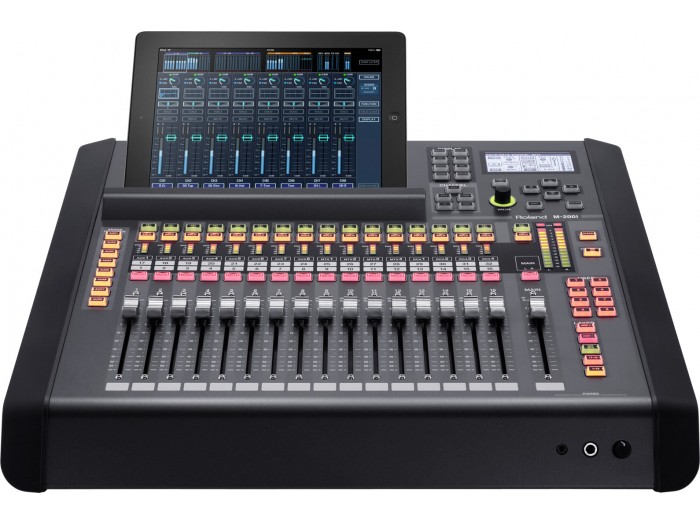

Comprehensive iPad Control Meets Professional Mixing Console

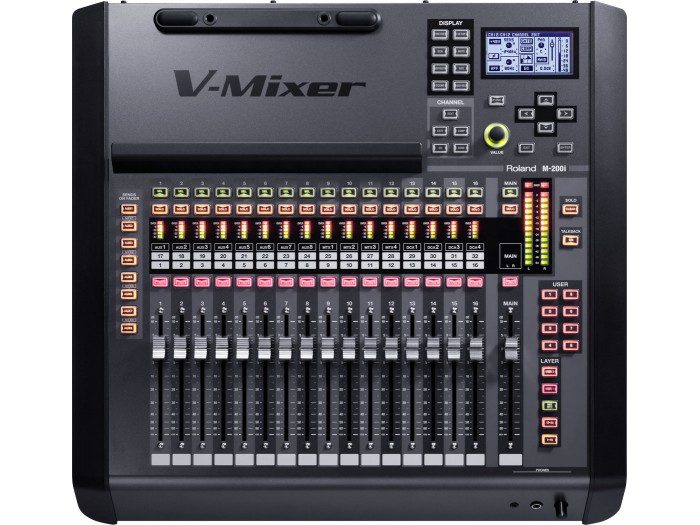

World Class Sound Quality in an All-In-One Console – the M-200i V-Mixer

- 32 Channel Mixer w/Moving Faders

- 4 Band PEQ / Comp & Gate (w/Key-in Filter) per channel

- 8 AUX / 4 Matrices - with EQ, Dynamics & Delay

- 8 DCAs / 4 Mute Groups

- 4 Stereo Effects / 4 GEQ (31 Band)

- 24 Analog Inputs, 12 Analog Outputs and Stereo Digital Output (AES/EBU)

- REAC Expandable

- 19'' Rackmount Compatible

PROCESSING

Channels/Buses CHANNELS: 32

BUSES: MAIN L/R, 8 AUX, 4 MATRIXInputs/Outputs INPUTS: 24 (64 when using optional REAC devices)

OUTPUTS: 14 (Max 54 ports when using REAC Devices)

Signal Processing AD/DA Conversion: 24 bit

Sample Rate: 48.0 kHz or 44.1 kHzConsole Latency 2.0 mS (typ.) *1

* Total Latency of audio signal from M-200i's console inputs to M-200i's outputs.

* Sample Rate: 48.0 kHz * Effects: No insert effectsNetwork Latency 2.5 mS (typ.) *1

* Total System Latency of audio signal from S-1608 inputs to

outputs via M-200i's REAC ports.

* Sample Rate: 48.0 kHz * Effects: No insert effects

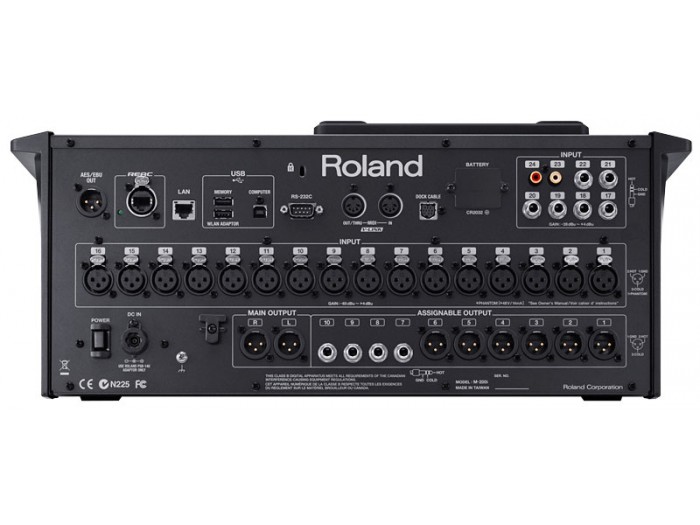

CONNECTORS

Inputs/Outputs/Others INPUT jacks (1 to 16): XLR-3-31 type (balanced, phantom power)

INPUT jacks (17 to 22): 1/4 inch Phone type (balanced)

INPUT jacks (23 to 24): RCA Phono type

ASSIGNABLE OUTPUT jacks (1 to 6): XLR-3-32 type (balanced)

ASSIGNABLE OUTPUT jacks (7 to 10): 1/4 inch Phone type (balanced)

MAIN OUTPUT jacks (L, R): XLR-3-32 type (balanced)

PHONES jack: Stereo 1/4 inch phone type, Miniature phone type

AES/EBU OUT jacks: Optical type

REAC port: RJ-45 EtherCon type

RS-232C connector: 9-pin D-sub type

MIDI connectors (OUT/THRU, IN): 5-pin DIN type

USB MEMORY port: USB Type A

USB WLAN ADAPTOR port: USB Type A

USB COMPUTER port: USB Type B

LAN port: RJ45 type

DOC CABLE port : 10-pin mini DIN type

DOC CABLE port : 10-pin mini DIN type

DC IN jack

Grounding terminal

* XLR type: 1 GND, 2 HOT, 3: COLD

* Phantom power: DC+48V (unloaded maximum), 14mA (maximum

load, All XLR type inputs)

INPUT/OUTPUT CHARACTERISTICS

Frequency Response ASSIGNABLE OUTPUT jacks (1 to 10): -2 dB / +0 dB (20k ohms load, +4 dBu, typ.)

MAIN OUTPUT jacks (L, R): -2 dB / +0 dB (20k ohms load, +4 dBu, typ.)

PHONES jack: -3 dB / +0 dB (40 ohms load, 150 mW, typ.)

* Sample Rate: 48.0 kHz or 44.1 kHz

* Input Connector: INPUT 1 to 24 (Pad: ON, Input sens: +4 dBu, 20 Hz to 20 kHzTotal Harmonic Distortion + Noise ASSIGNABLE OUTPUT jacks (1 to 10): 0.05 % (+4 dBu, typ.)

MAIN OUTPUT jacks (L, R): 0.05 % (+4 dBu, typ.)

PHONES jack: 0.05 % (40 ohms load, 150 mW, typ.)

* Sample Rate: 48.0 kHz or 44.1 kHz

* Input Connector: INPUT 1 to 24 (Input sens: +4 dBu, 20 Hz to 20 kHz)Dynamic Range ASSIGNABLE OUTPUT jacks (1 to 10): 102 dB (typ.)

MAIN OUTPUT jacks (L, R): 102 dB (typ.)

* Sample Rate: 48.0 kHz or 44.1 kHz

* Input Connector: INPUT 1 to 24 (Input sens: +4 dBu, 20 Hz to 20 kHz)Crosstalk@ 1 kHz INPUT jacks (1 to 24): -80dB (Input sens: +4 dBu, IHF-A, typ.)

ASSIGNABLE OUTPUT jacks (1 to 10): -88 dB (typ.)

MAIN OUTPUT jacks (L, R): -88 dB (typ.)

* Sample Rate: 48.0 kHz or 44.1 kHzNominal Input Level (Variable) INPUT jacks (1 to 16): -65 to +4 dBu

INPUT jacks (17 to 24): -28 to +4 dBuInput Impedance INPUT jacks (1 to 16): 14 k ohms

INPUT jacks (17 to 24): 10 k ohmsNon Clip Maximum Input level INPUT jacks (1 to 24): +22dBu (1 kHz, 20 k ohms load, typ.)Nominal Output Level ASSIGNABLE OUTPUT jacks (1 to 10): +4 dBu (Load impedance:

10 k ohms, typ.)

MAIN OUTPUT jacks (L, R): +4 dBu (Load impedance: 10 k ohms, typ.)Output Impedance ASSIGNABLE OUTPUT jacks (1 to 10): 600 ohms (typ.)

MAIN OUTPUT jacks (L, R): 600 ohms (typ.)

PHONES jack: 49 ohms (typ.)Recommended Load Impedance ASSIGNABLE OUTPUT jacks (1 to 10): 10 k ohms or greater

MAIN OUTPUT jacks (L, R): 10 k ohms or greater

PHONES jack: 40 ohms or greaterMinimum Load Impedance PHONES jack: 16 ohmsNon Clip Maximum Output level ASSIGNABLE OUTPUT jacks (1 to 10): +22 dBu (1 kHz, 10 k ohms

load, typ.)

MAIN OUTPUT jacks (1 to 10): +22 dBu (1 kHz, 10 k ohms load, typ.)

PHONES jack: 150 mW + 150 mW (1 kHz, 40 ohms load, typ.)Residual Noise Level (IHF-A, typ.) -88 dBu (All faders: Min)

-80 dBu (Main Fader: Unity, Channel faders: Unity only one INPUT1 channel, Preamp sens: Min)

-61 dBu (Main Fader: Unity, Channel faders: Unity only one INPUT1 channel, Preamp sens: Max)

* Input 150 ohms terminate

* Output Connector: ASSIGNABLE OUTPUT jacks (1 to 10), MAIN OUTPUT jacks (L, R)

* Sample Rate: 48.0 kHz or 44.1 kHzEquivalent Input Noise Level (E.I.N.) -126 dBu (Main Fader: Unity, Channel faders: Unity only one channel, Preamp sens: Max)

* Output Connector: ASSIGNABLE OUTPUT jacks (1 to 10), MAIN OUTPUT jacks (L, R)

* Sample Rate: 48.0 kHz or 44.1 kHz

OTHERS

Display Graphic LCD 132 x 64 dots with backlightCurrent Draw 3.6 AOperation Temperature +5 to +40 degrees Celsius

+41 to +104 degrees FahrenheitAccessories DOCK CABLE, TABLET STAND, AC Adaptor, Power Cord, Owner's Manual

Options Rackmount Kit: RA-10U, Wireless USB Adapter: WNA1100-RL USB Flash Memory

SIZE AND WEIGHT

Width (W)491 mm19-3/8 inchesDepth (D)490 mm19-5/16 inchesHeight (H)198 mm7-13/16 inchesWeight 9.8 kg21 lbs. 10 oz.
