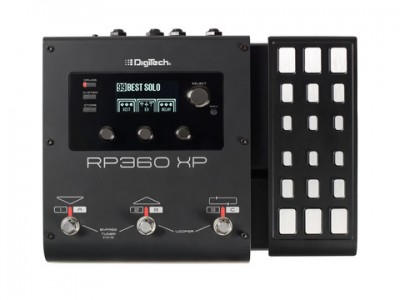

DigiTech RP360 XP

The DigiTech® RP360XP guitar multi-effect processor is a complete 360° guitar effects solution. It includes over 160 different effects (55 amps, 27 cabinets, 85 stompboxes) inspired by world’s best-selling pedals and iconic amps. The LCD interface makes it easy to explore and discover the perfect tone to get that desired effect. Along with the incredible selection of effects, the RP360XP has an expression pedal, 40-second looper, nearly 200 presets, USB port, configurable footswitch modes, built-in tuner; dedicated headphone jack, Sound Check™ and 60 built in drum tracks.

You can add up to 8 effects to each preset. The RP360XP has a USB port for transferring and loading presets from your computer. With nearly 200 onboard presets and Nexus, DigiTech’s free preset editor and librarian software, you can create, transfer, and share an unlimited number of tones. The USB port also allows you to record your guitar tracks directly to your computer. The RP360XP works with GarageBand, Pro Tools, Cubase, Ableton, and virtually every other recording software for Mac or PC.

The RP360XP is versatile with 3 different footswitch modes. Incorporate the RP360XP into your existing pedalboard using stompbox mode where you can assign any effect in your preset to each footswitch.  If you choose to use the RP360XP by itself, easily navigate through your presets in preset mode or bank mode. Extend your control of the RP360XP with a 3-button footswitch. The 3-button footswitch can be set-up to extend the control of the onboard looper or navigate through your banks and presets.

The RP360XP includes a new feature exclusive to DigiTech called Sound Check. Sound Check allows you to quickly record a phrase with your guitar and set it to repeat while you dial in the perfect effects and settings. Sound Check saves you from having to continually bend over to make minor adjustments while dialing in your tone. With Sound Check you’ll spend less time tweaking and more time playing with the perfect tones

Over 160 Amps, Cabinets, and Effects

55 Amp/Acoustic types

27 cabinets

85 effects

198 presets (99 factory, 99 user)

Expression pedal

Power supply included

40-second looper

60 High quality drum patterns

Durable metal chassis and footswitches

2 x 2 USB audio streaming

Built-in chromatic tuner

External control input for a 3-button footswitch

Configurable footswitch modes (Stompbox, Preset, Bank)

Up to 5 seconds of delay time

USB editing via DigiTech Nexus

Stereo 1/4" Output

Stereo 1/8" headphone output

Stereo 1/8" Aux Input

Amp / Mixer mode optimizes 1/4" outputs for amps and mixers

24-bit 44.1kHz sample rate

A/D/A Converter 24-bit high performance audio

Sampling Frequency 44.1 kHz

A/D/A AudioDNA2™ DSP Processor

Simultaneous Effects 10

Preset Memory 99 User Presets/99 Factory Presets

Phrase Looper 40 seconds of record time

Drum Machine 60 Patterns

Guitar Input 1/4˝ Unbalanced (TS)

Input Impedance 1 MOhm

Max Input +10 dBu

Aux Input Connector 1/8˝ Stereo (TRS)

Output Connectors 1/4˝ Impedance Unbalanced

Output Impedance 500 Ohms per side

Max Output +8.5 dBu

Headphone Output 1/8˝ Stereo (TRS) – 118 mW per channel @ 50 Ohms Optimized for use with headphones having an impedance of 60 Ohms or less

USB Type Type B, supports USB 1.1 Full Speed (12 Mbps Bandwidth USB 2.0 compatible)

USB Recording Sample Rate 44.1 kHz

USB Recording Bit Depth Supports 16-bit or 24-bit (depends on setup in recording software)

Dimensions 11.5” (L) x 8.5” (W) x 2” (H)

Unit Weight 4.12 lbs.

Power Requirements 9 VDC, 300mA, 2.7 W, center pin GND, outer sleeve positive

Power Supply PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
