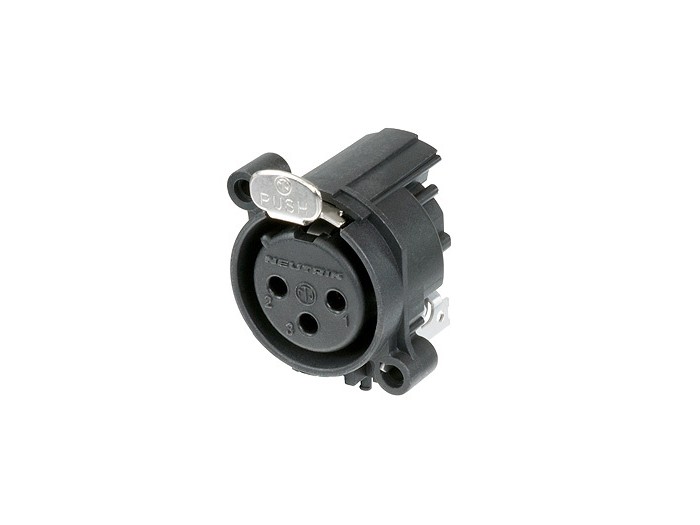

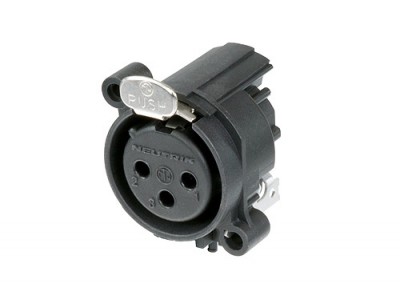

3 pole female XLR receptacle, grounding: without ground/shell contact, horizontal PCB mount
The `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.
Product
Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 6 mΩ (inner)
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
6 A
Grounding Options
no grounding
Mechanical
Lifetime
> 1000 mating cycles
Wiring
Horizontal PCB mount
Locking device
Latch lock
Material
Insert
Polyamide (PA 6.6 25 % GR)
Locking element
Steel Ck67
Environmental
Standard compliance
IEC 61076-2-103
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
