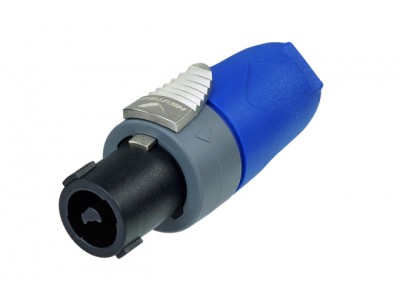

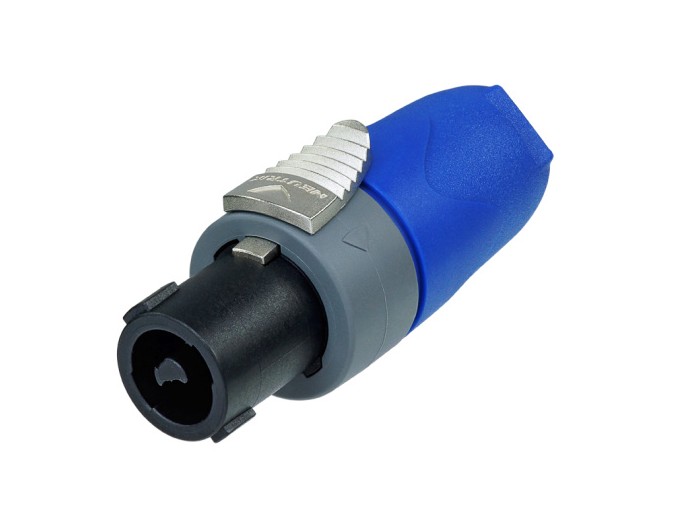

2 pole cable connector, chuck type strain relief
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Product
Electrical
Contact resistance
< 2 mΩ (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 GΩ (after dampheat)
Rated current per contact
40 A rms continuous
Rated current per contact
50 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is not to be used as an AC mains or power supply connector!
Mechanical
Cable retention
≥ 220 N (subject to cable O.D. and material)
Lifetime
> 5000 mating cycles
Wiring
screw type terminals or soldering
Locking device
Quick Lock (latch)
Material
Contacts
Brass (CuZn39Pb3)
Locking element
Zinc diecast (ZnAl4Cu1)
Strain relief
Polyacetal (POM)
Environmental
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
