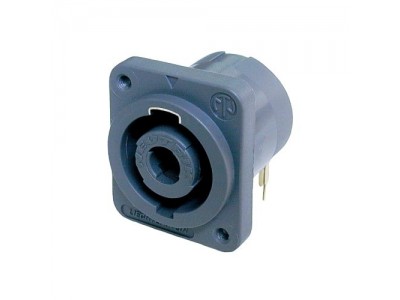

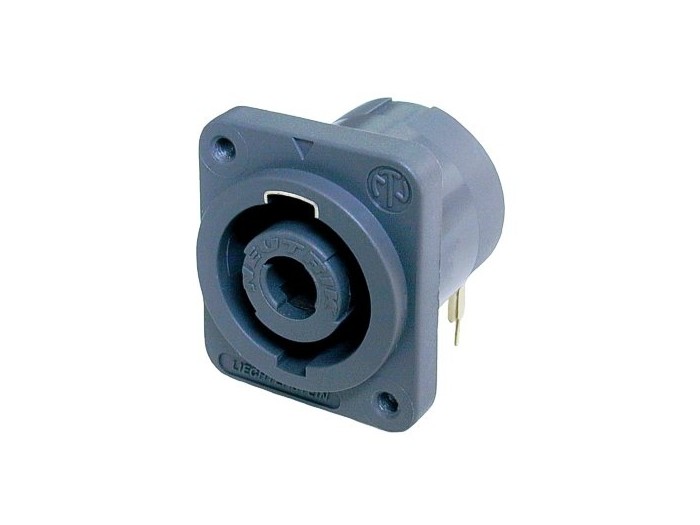

4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), horizontal PCB mount
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Product
Electrical
Contact resistance
≤ 3 mΩ (inner) (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 GΩ (after dampheat)
Rated current per contact
30 A rms continuous
Rated current per contact
40 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Wiring
Horizontal PCB mount
Locking device
Quick Lock
Layout
standard hole position, self tapping screw holes (A-Screw)
Material
Shell
Polyamide (PA 6 30 % GR) grey
Environmental
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
