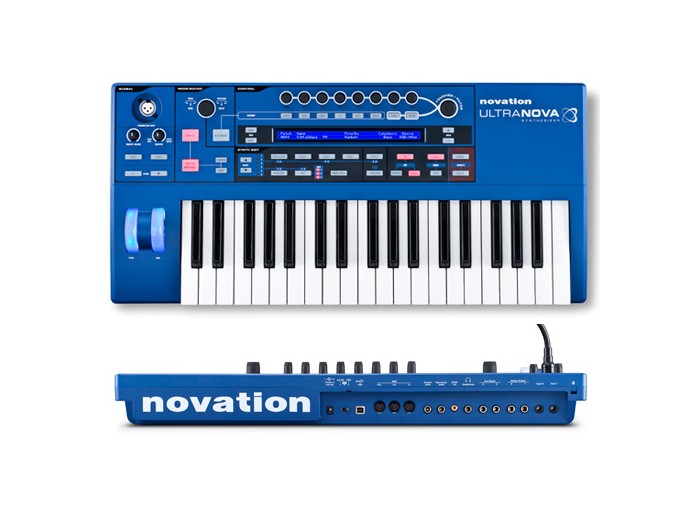

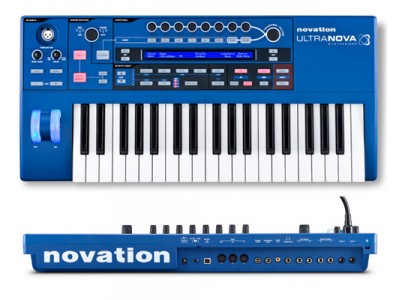

This is our most ambitious synth to date. It takes our legendary SuperNova analogue-modelling synth engine, and enhances it to vastly increase its sonic capabilities. The result is a synth that can create sounds that are simply impossible with other synths in its class.
Three oscillators, noise and ring modulation for making your sounds as rich as possible.
Classic waveforms and cutting edge wavetables for creating classic and unique new sounds.
Two routable multi-mode filters for flexible sound sculpting.
6 Envelopes, 3 LFOs and 20 slot modulation matrix for almost unlimited programming capabilities.
18-voice polyphony for playing complex synth lines and chords.
Hardware
144 character LCD
8x detented touch sensitive encoders
1x large smooth encoder (with back-lit filter lock buttons)
1x large patch select/speed dial encoder
2x volume & monitor mix dials
39 LED lit/indicated buttons
Pitch wheel (LED lit)
Modulation wheel (LED lit)
37 note keyboard with velocity and aftertouch
XLR dynamic mic input
2x ¼” jack inputs
2x ¼” jack outputs
2x ¼” jack aux outputs
1x ¼” jack headphone output
SPDIF digital output on RCA connector
Expression pedal on ¼” jack input
Sustain pedal on ¼” jack input
MIDI in/out/thru
12 volt power input
USB port (UltraNova can be powered via USB)
Kensington security slot
USB Audio Interface
2 in, 4 out soundcard
44.1 / 48kHz at 16 or 24 bit to host
44.1 / 48kHz at 16 bit from host (if you select 24 bit from host, audio
data is limited by the driver to 16 bit playback)
Dynamic range : - 98dB
Input 1 + 2 frequency response : 20Hz to 20kHz +/- 1dB
Gain rage : -10 to + 65dB
THD+N = 0.002%
Maximum output level +6dBu
signal to noise ratio referenced to 0dBFS (+6 dBu) = 96dB
Noise EIN = 117dB
Input 1 - balanced XLR & balanced TRS 1/4"jack
Input 2 - balanced TRS 1/4" jack only
Synth Engine
Up to 18 note polyphony (dynamic voicing)
Mono-Timbral
Per patch
3x oscillators
1x noise generator
2x ring modulators
Waveforms include:
Square, sine, tri, sawtooth, pulse, 9x saw:pulse combinations
20x digital waveforms
36x wavetables
Filter types
2x filters per patch
low pass no resonance 6dB per octave
low pass 12dB
low pass 18dB
low pass 24dB
band pass 6:6
band pass 6:12
band pass 12:6
band pass 6:18
band pass 18:6
band pass 12:12
high pass no resonance 6dB per octave
high pass 12dB
high pass 18dB
high pass 24dB
Modulation sources
20 modulation slots per patch
6x envelope generators
3x LFOs
Aftertouch
Velocity
Key scaling/track
Mod wheel
Expression pedal
Total of 66 Destinations including
Oscillator pitch, pulse width, wavetable index, level and sync
Filter cutoff, resonance, envelope settings
Effects parameters and send levels
Recursive modulation (modulating modulation sources themselves)
5 effects slots per patch
Distortion – up to 2 instances
Compressor – up to 2 instances
Chorus/Phase – up to 4 instances
Delay – up to 2 instances
Reverb – up to 2 instances
Gator
EQ
Misc
12 band vocoder
Arpeggiator – 33 patterns
Chord function – lock up to 10 notes
Patch storage - up to 512 on hardware (ships with 300 factory patches)
Power Requirements
USB bus powered
12V DC power supply included
Maximum power consumption 12V DC 400mA
Product Dimensions
725mm (28.54”) length x 374mm (14.72”) depth x 152mm (5.98”) height
(These are the boxed dimensions)
