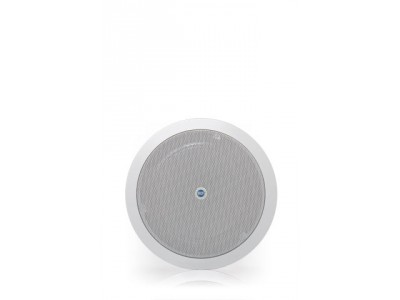

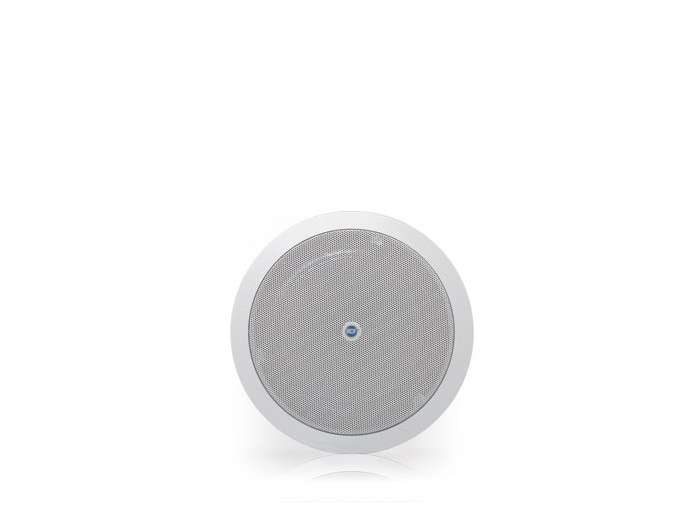

The PL60 is a ceiling speaker with an elegant design, intended for recess installation in false ceilings or panels.
It is ideal for the reproduction of announcements and background music and features a multiplesocket line transformer for use with constant voltage systems.
Acoustical Specifications
- Type of speaker: Ceiling
- Frequency Response: 110 Hz ÷ 20 kHz
- Max SPL @ 1m: 102 dB
- Horizontal coverage angle: 150°
- Vertical coverage angle: 150°
- Power Handling: 6 W RMS
- Peak Power Handling: 12 W PEAK
- System Sensitivity: 91 dB
- Impedance: 8 Ω
Input Section
- Input connector: 5-pin terminal strip
- Constant voltage: 100 V / 70 V
- Power Selection: 6 - 3 W (110 V)
Cabinet
- Hardware: Plastic material
- Colour: White
- Grille: Steel
Physical Specifications
- Height: 75 / 2.95 mm/inch
- Width: 204 / 8.03 mm/inch
- Depth: 204 / 8.03 mm/inch
- Net weight: 800 / 1.76 kg/lbs
Shipping information
- Package height: 240 / 9.44 mm/inch
- Package width: 235 / 9.25 mm/inch
- Package depth: 105 / 4.13 mm/inch
- Shipping weight: 1.07 / 2.35 kg/lbs
