Jack input with parallel "THRU" output, transformer balanced XLR output. Attenuable input sensivity, can handle both line level and speaker level singals.
Internet prodaja
-
Korpa
- Moj nalog
- Prijavite se
- Registrujte se
- Beograd 011 / 76 17 400
- Novi Sad 021 / 450 800
- Niš 018 / 250 670
Pretraživanje artikala
Napredna pretraga
Pretraži
Naziv proizvoda

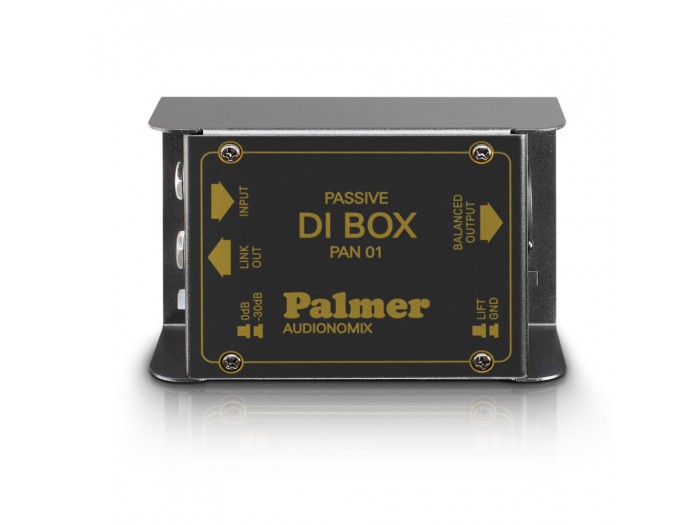

Palmer Pro PAN 01
[klikni na sliku za uvećan prikaz]
Naša cena:
8.090,00 DIN
U cenu je uračunat iznos PDV-a.
Garantovano najniže cene
Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!
Opis proizvoda:
Karakteristike:
Features:
- Trafosymetric XLR Output
- Input Sensitivity Adjustable
- Input impedance: 68,000 ohms
- Output impedance: 600 ohms
- Transformer ratio: 10 : 1
- Maximum output: +6 dB
- Ground lift switch
- Metal casing 110 x 73 x 42 mm
Specifications
- No. of channels: 1
- Passive/Actibe: Passive
- Transformer balanced: Yes
- Attenuator: -30 dB
- Input/Output Gain: -20 dB
- Ground lift switch: Yes
- Max Input Level: +54 dBu
- Max Output Level: +4 dBu
- Frequency Range
2K Source Imp. -1dB: 20 Hz - 20 kHz - Input Impedance 60Hz: 60 kΩ
- Nom. Output Impedance: 600 Ω
- Housing: Steel
- Dimension: 110 x 73 x 42 mm
