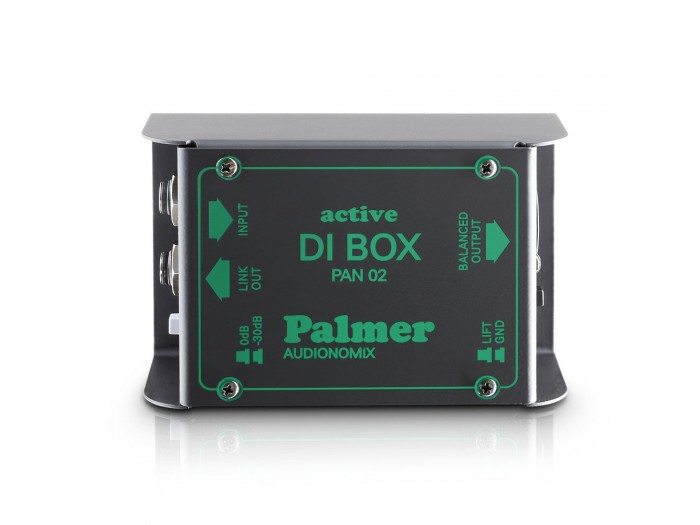

Palmer Pro PAN 02

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

• No. of channels: 1
• Passive/Actibe: Active
• Transformer balanced: Yes
• Attenuator: -30 dB
• Power Supply: 9V / 48V
• Input/Output Gain: -4 dB
• Ground lift switch: Yes
• Max Input Level: +45 dBu
• Max Output Level: +10 dBu
• Frequency Range  2K Source Imp. -1dB: 10 Hz - 20 kHz
• Input Impedance  60Hz: 1 MΩ
• Nom. Output Impedance: 600 Ω
• Power consumption: 3.8 mA (9V), 4 mA (48V)
• Housing: Steel
• Dimension: 110 x 73 x 42 mm
