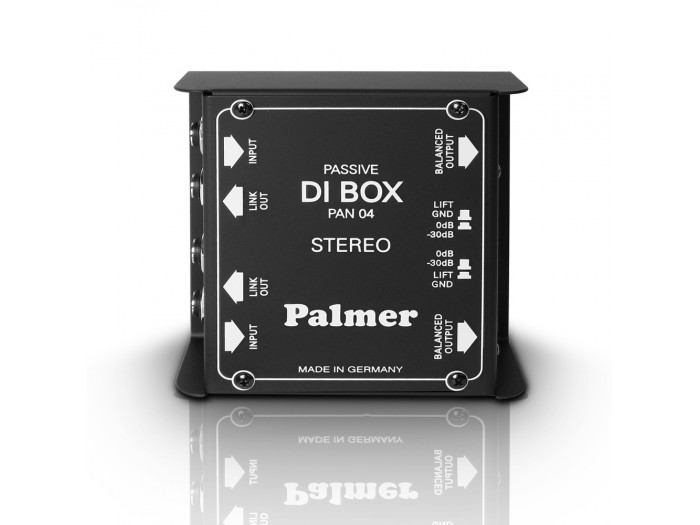

Palmer Pro PAN 04

2-channel passive DI box for line and loudspeaker levels. PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell „THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

• No. of channels: 2
• Passive/Actibe: Passive
• Transformer balanced: Yes
• Attenuator: -30 dB
• Input/Output Gain: -20 dB
• Ground lift switch: Yes
• Max Input Level: +54 dBu
• Max Output Level: +4 dBu
• Frequency Range  2K Source Imp. -1dB: 10 Hz - 40 kHz
• Input Impedance  60Hz: 60 kΩ
• Nom. Output Impedance: 600 Ω
• Housing: Steel
• Dimension: 110 x 110 x 45 mm
