Palmer Pro PAN 16

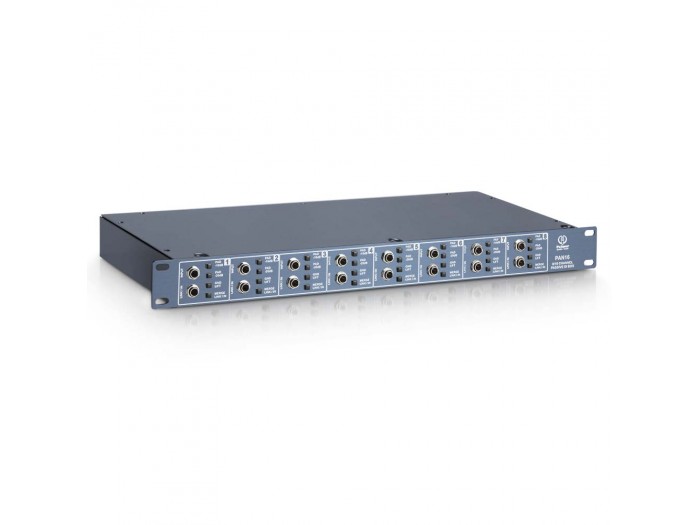

The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE THRU/IN function, the parallel THRU output can be connected as a second input for looping the signal.The signal is fed with the one from the INPUT jack as a mono sum into the output. Thus, the PAN16 offers a maximum of 16 inputs, two PAD buttons enable an attenuation of 10, 20 or 30 dB. The outputs are on XLR connectors and are electrically isolated and balanced by a transformer. They are available with 8 additional THRU-sockets on the rear panel of the device.

• Type: passive
• Number of Channels: 8
• Number of Inputs: 8/16
• Input Connections: 6.3 mm jack
• Max. Input Level: +54 dBu
• Input impedance: ((at) 60 Hz) 1 M Ohm
• Input Attenuation: 0 / -30 dB
• Number of Outputs: 4 (+ 4 Parallel Thru out)
• Number of THRU Outputs per Channel: 2
• Output Connections: 6.3 mm TRS, XLR
• Max Output Level: 54 dB
• Output Impedance: 600 ohms
• Frequency Response: 10 - 40,000 Hz
• Transformer Balanced: yes
• Translation Ratio (Ratio): 10 : 1
• Controls: PAD -10 dB, PAD -20 dB, Ground-Lift, Merge Thru/In
• Housing Material: sheet steel
• Housing Surface: powder coated
• Width: 480 mm / 19"
• Depth: 200 mm
• Height: 45 mm/1 U
