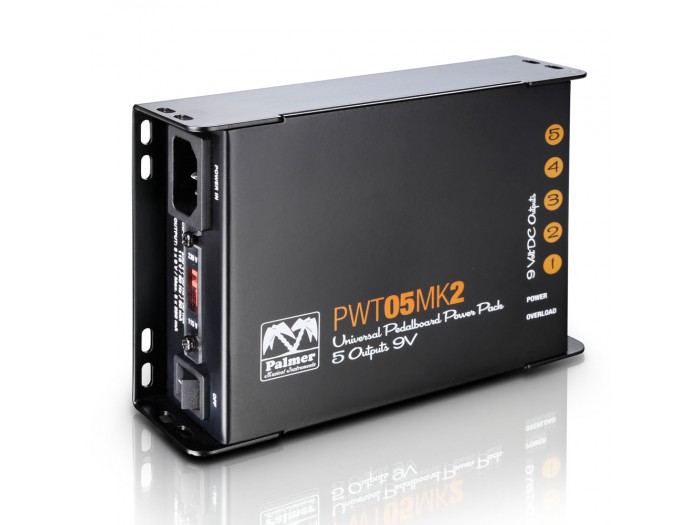

Palmer MI PWT 05 MK2

With a stable 250 mA on each of the five center negative barrel style outlets the compact Palmer PWT 05 MK2 is most suited to virtually any pedalboard size. To deliver clean DC power to your pedals and eliminate ground loops between them and the associated hum the outlets are isolated.

The PWT 05 MK2 is protected against overload and comes with 25 cm and 50 cm power cable sets plus a merge cable to combine two outlets for a massive 500 mA of 9 V output. Also included is a 1-into-5 daisy chain that lets you power five pedals from one output if their total current draw does not exceed 250 mA. The rugged enclosure of the Palmer PWT 05 MK2 provides mounting and cable relief options while the IEC mains inlet and voltage selector enable worldwide use.

• Product type: power supply
• Type: multiple power supply
• Mains connector: IEC mains cord
• Input voltage: 230 V ~ 50 Hz, 115 V ~ 60 Hz
• Outputs: 5
• Output connectors: 2.1 x 5.5 mm
• Output voltage: 9 V
• Max. output current: each output 250 mA
• Isolated outputs: yes
• Polarity: center negative
• Cord length: 25 - 50 cm
• Display: Power, Overload
• Controls: mains voltage selector, Power
• Dimensions [W x D x H]: 105 x 140 x 45 mm
