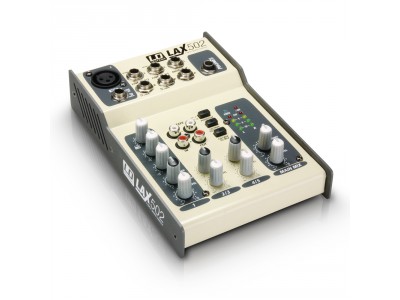

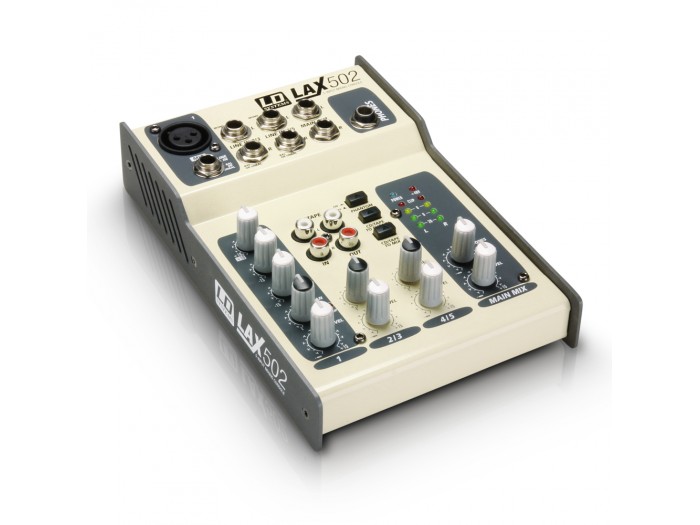

LD Systems LAX 502

LDLAX502 - five inputs, minimal dimensions, perfect audio data

The smallest console in the LAX series boasts a microphone and two stereo line inputs within the smallest space - but despite its compact size, it offers excellent audio quality and a clear user interface. The LDLAX502 features jack and phono inputs; phantom power can, of course, be connected for the microphone input. The input features three-band tone control.

The solid design of the LDLAX502 guarantees optimum performance and a long service life, even when used in a demanding stage environment. The LDLAX502 is best used in the studio with low channel emergence or within a simple editing suite on a PC.

• Mic Input / Line: 1
• CH EQ: High, Low, ± 15 dB
• 48 V Phantom Power Supply: Yes
• Stereo Input: 2
• CH EQ: Without
• Head Phone: With
• Tape in/out: in/out
• DSP: Without
• THD: 0.005 % 20 Hz - 20 k
• Frequency Response: 20 Hz - 20 kHz ± 0.5 dB

• S/N: - 80 dB
• Input Voltage: AC 18.5 V x 150 m A x 2
• Dimensions (W x H x D): 125 x 45 x 195 mm
