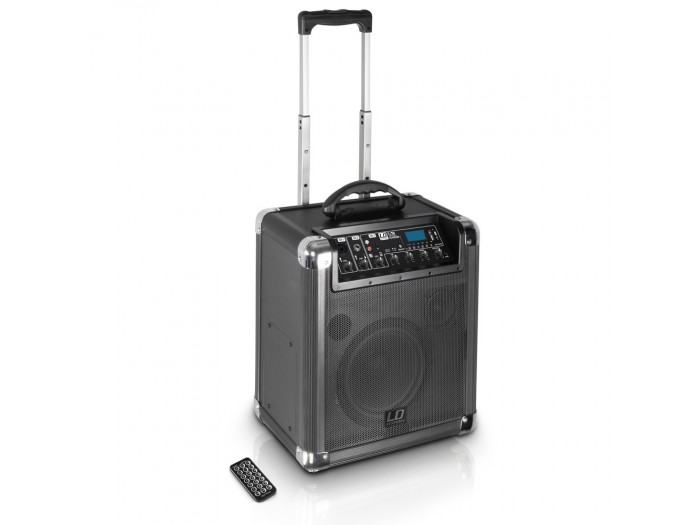

LD Systems Roadjack 10

LDRJ10 Battery Powered Bluetooth Loudspeaker with Mixer

With built-in wheels and extension handles for carting convenience the LDRJ10 active 2-way system is your mobile sound station. It is powered by a rechargeable battery pack for up to 20 hours of continuous operation and provides a 90 Hz - 18 kHz frequency response with 100 watts of peak output.

The LDRJ10's integrated mixer features 3 channels with individual volume controls, 2-band EQ, adjustable reverb and master volume. Combo, 6.3 mm TRS jack, RCA and 3.5 mm TRS mini-jack connectors acommodate a wide variety of input sources.

A major feature permitting wireless streaming to the LDRJ10: the system sports a Bluetooth player which also supports SD card and USB storage devices. The player menu includes language selection and multiple genre specific EQ presets for instant sound adjustment.

The Roadjack 10 also features corners for cabinet protection, a stand mount insert and includes a convenient IR remote control.

• Type: active
• Woofer Size: 10"
• Woofer Size: 254 mm
• Woofer Magnet: ferrite
• Woofer Brand: custom made
• HF driver size:     3" (wide range)
• HF driver size: 76.2 mm
• HF driver magnet: ferrite
• HF driver brand: custom made
• Amplifier: class D
• Power Output (RMS): 25 W
• Power Output (Peak): 100 W
• Frequency Response: 65 - 18.000 Hz
• SPL (1 W/1 m): 96 dB
• Max SPL: 117 dB
• Protection: Short circuit, overvoltage, overload protection
• Controls: Mic 1 Level, Mic 2 Level, CD / Tape IN Level, Low, High, Reverb, Master Volume, AUX / MP3 switch
• Indicators: Power, charge/battery status

Media player

• Supported media: Bluetooth, USB stick, SD card
• Supported formats: MP3 file, WAV-CD, WMA-CD
• Media player controls: Mode (Menu / Bluetooth /SD / USB) , Play / Pause, Stop, Repeat, Previous Track, Next Track)
• Media player display elements: Lighted multifunctional LC display
• Line Inputs: 1
• Line Input Connectors: 2 x cinch, 3.5 mm jack
• Mic Inputs: 2
• Mic Input Connectors: XLR, 6.3 mm jack
• Power Supply: switching power supply
• Operating Voltage: 100 V - 120 V / 60 Hz, 220 V - 240 V / 50 Hz
• rechargeable batteries: 12 V / 5 Ah
• Cabinet Material: 15 mm MDF
• Cabinet Type: bass reflex
• Width: 415 mm
• Height: 525 mm
• Depth: 328 mm
• Other Features: Stand mount 36 mm, transport castors, pull-out handle, carrying handle, IR Remote for Media Player
