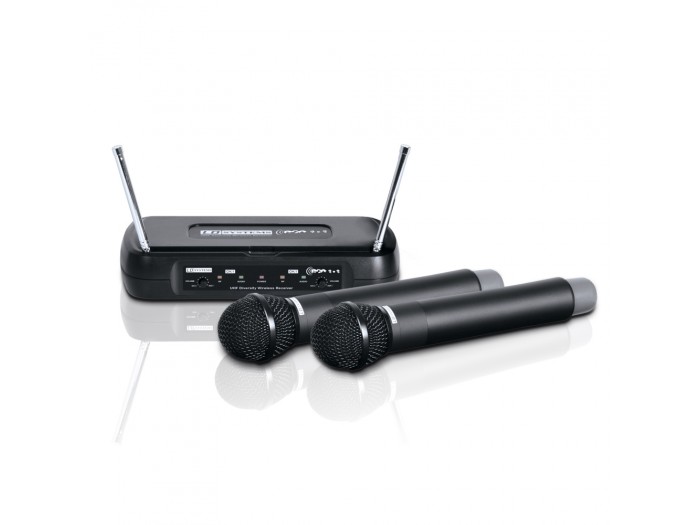

LD Systems ECO 2X2 HHD 1

2 Channel Diversity UHF Wireless Set with 2 x Handheld Microphone

LD Systems ECO Sets are the perfect introduction to wireless audio transmission: All components guarantee optimal audio delivery via professional outputs. The extensive features of the LD WS ECO Series Sets are remarkable in this price category.

The frequency band of 863 - 865 MHz permits operation in most EU countries with no registration or licensing required.

Receiver Specifications:

• Antenna Connector: 1/2 Wave 50
• Audio Frequency Range: 60 - 16.000 Hz
• Signal-to-Noise Ratio: > 100 dB
• Audio Output: XLR and Jack
• Audio Output Level (balanced): 250 mV
• Audio Output Level (unbalanced): 250 mV
• Controls: Volume, On/Off Switch
• Indicators: Power LED, AF LED & RF LED
• Power Supply: 12 ~ 18 V DC 300 mA

 Microphone Specifications:

• Microphone Type: Dynamic
• Polar Pattern: Cardioid
• Audio Frequency Range: 60 - 16.000 Hz
• Signal-to-Noise Ratio: > 102 dB
• Max. Audio Input Level: 0 dBV ~ +20 dBV
• RF Output Power: 10 dBm
• Gain Adjustment Range: 30 dB
• Input Impedance: 470 KiloOhm
• Controls: Power Switch
• Indicators: Power LED & Battery Indicator LED
• Dimensions (H x D): 250 x 53 mm
• Weight: 270 g
• Battery: 2 AA Alkaline Batteries for > 8 hours service
