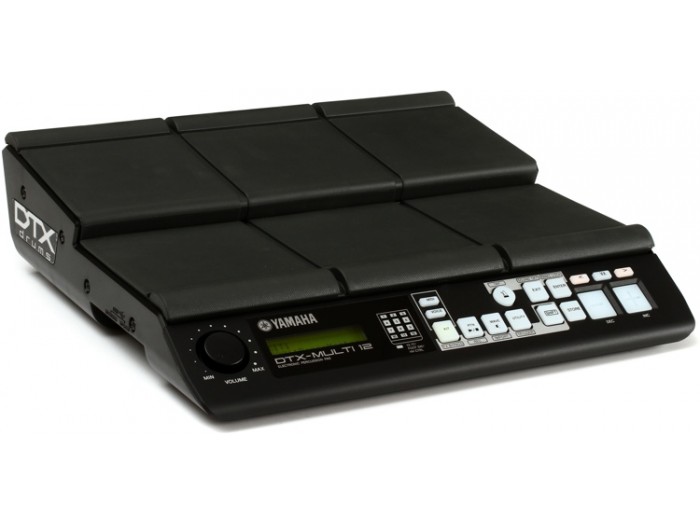

Yamaha DTX-MULTI12

MULTI-Level, MULTI-Play, and MULTI-Purpose!

- The most powerful, all-in-one percussion pad that suits anyone from a beginner to an expert, accommodating different levels of playing, a wide variety of playing styles and performance situations.

- DTX-MULTI 12 equips the 12 pads which are easy to be distinguished even at the dark stage. You can use the DTX-MULTI 12 in a variety of ways, such as using the percussion pad in combination with acoustic drums and percussion to accent music with a rich variety of voices, transferring data to the connected computer where you can compose music with the included "Cubase AI 5" program, and connecting a kick pedal (sold separately) to create as a compact drum set.

Size/Weight

Dimensions        Width    345mm

Height   96mm

Depth   319mm

Weight Weight 3.3kg

Pad section

Built-in pads       12

External inputs  5 (three-zone x 1; monaural x 4)

Tone generator

Maximum Polyphony     64 notes

Voices   Drum and percussion: 1,061Keyboard: 216

Effects  Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer

Drum kits             Preset: 50User-defined: 200

Wave memory  100 MB (16-bit linear conversion)

Sequencer

Note Resolution               Quarter note / 480

Patterns               Preset patterns: 128 phrases (including 3 demo patterns)User-defined patterns: 50 phrases

Sequence formats           ProprietarySMF Format 0 (for loading only)

Sequence capacity          152,000 notes

Recording method          Real-time overdubbing

Waves

Readable quantity           500

Bit depth             16 bit

Wave memory  64 MB

Maximum size   Mono sample: 2 MBStereo sample: 4 MB

Sample formats                Proprietary, WAV, and AIFF

Other

Display  Backlit LCD with 2 rows of 16 characters

Connectors         PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch)PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger)HI-HAT CONTROL jack (standard stereo-phone plug)FOOT SW jack (standard stereo-phone plug)OUTPUT L/MONO and R jacks (standard phone plugs)PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN.

Power Consumption      9W (DTXM12 and PA-5D adaptor)

Package Contents            Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner's Manual , Data List booklet, DVD-ROM (Cubase AI5)

Trigger section

Pad functions    Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages

Click-track

Tempo  30 to 300 BPM. Tap tempo functionality

Beats     1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16

Note timing        Accent notes, quarter notes, eight notes, sixteenth notes, triplets
