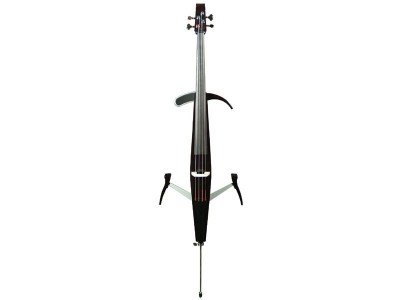

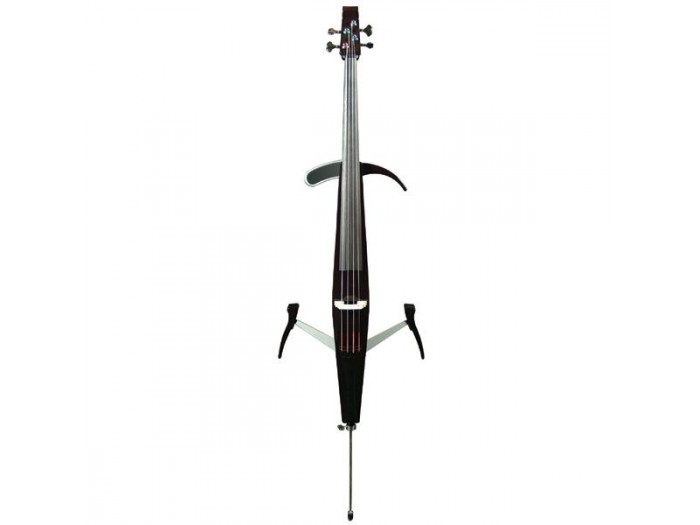

Yamaha SVC-50

The SVC50 is designed with slimmer, compact dimensions that easily break down to allow the entire instrument to fit into a compact case for easy transport. While this model utilizes the same pickup system as found in the SVC110, the SVC50's leg supports are a single unit design that is easily removed from the instrument's alder body.

Size/Weight

Dimensions        Width    432mm

Height   1,235mm

Depth   240mm

Weight Weight 3.5kg (7lbs. 11oz)

Body

Size        4/4

Body      Alder

Neck      Maple

Finger Board      Ebony

Parts

Bridge   Maple (PANPI)

Tuning Pegs        Worm Gear Type

Tailpiece              Ebony

Knee Support    Beech (Detachable)

Strings  Super Sensitive Red Label

Design/Architecture Detail

Pick Up System Piezo Pickup

Functions

Overall Controls                Master Volume                Yes

Reverb ROOM, HALL1, HALL2

Other Control    Aux-In Volume

Storage and Connectivity

Connectivity       AUX IN Yes

LINE OUT             Yes

PHONE OUT       Yes

Power Supply

Power Supply    AA size 1.5V battery 2 pcs. or AC adapter (optional)

Battery Life         Manganese: approx. 2.5 to 15 hrs. Alkaline: approx. 10 to 35 hrs.

Accessories

Included Accessories      Battery AA size 1.5V batteries 2pcs.

Case      Soft Case

Headphones      Yes

Chest Support   Yes

Cable     Yes
