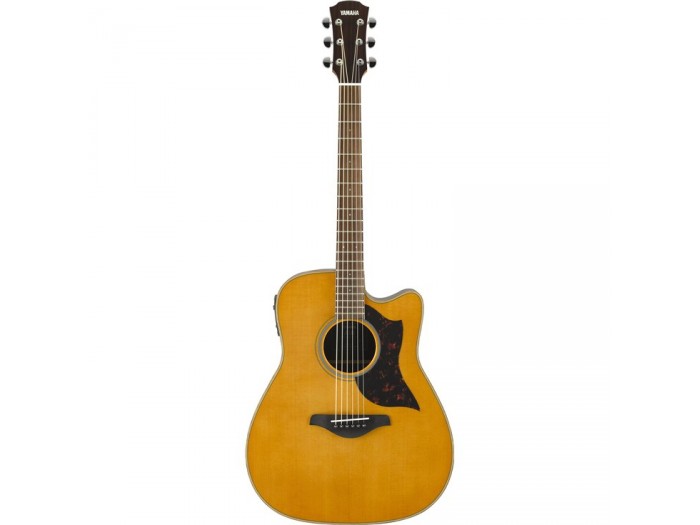

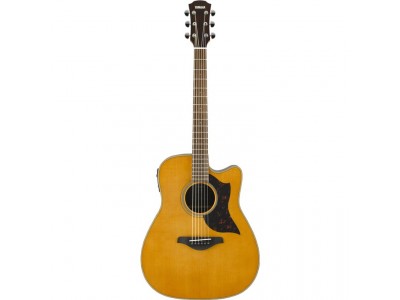

The A1R, traditional western body cutaway guitar, features solid sitka spruce top with scalloped bracing and rosewood back and sides. Yamaha's original SRT piezo pickup ensure solid plugged-in performance.
Traditional Western Body Cutaway
Solid Sitka Spruce Top
Rosewood Back & Sides
New Scalloped Bracing for Louder, Richer Acoustic Sound
Cut-through Plugged-in Sound by the SRT Piezo Pickup
High Comfort Neck Profile
Simple and Distinctive Looks
Elixir Strings
General Specifications
Body Shape Traditional Western Body Cutaway
Scale Length 650mm (25 9/16”)
Body Length 505mm (19 7/8")
Total Length 1046mm (41 3/16")
Body Width 412mm (16 1/4")
Body Depth 100-118mm (3 15/16”- 4 5/8”)
Nut Width 43mm (1 11/16”)
String Spacing * 11.0mm
Top Material Solid Sitka Spruce A.R.E. w/Scalloped Bracing
Back Material Rosewood
Side Material Rosewood
Neck Material African Mahogany 3ply
Fingerboard Material Rosewood
Fingerboard Radius R400mm (23 5/8")
Bridge Material Rosewood
Nut Material Urea
Saddle Material Urea
Bridge Pins Black ABS with White Dot
Tuners Die-cast Chrome(TM29T)
Body Binding Mahogany + Cream
Soundhole Inlay Black + White
Pickguard Tortoise Pattern
Body Finish Gloss
Neck Finish Matt
Electronics SYSTEM72 + SRT Piezo Pickup
Controls Vol/3-band EQ/Tuner/Mid FQ
Connections LINE OUT
Strings Elixir NANOWEB 80/20 Bronze Light
Accessories Soundhole Cover, Hex Wrench
Case None
