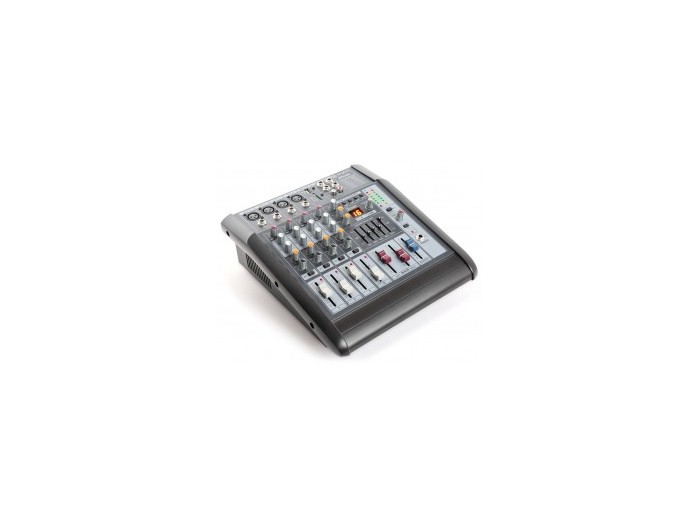

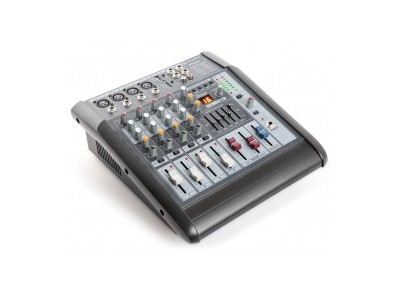

This 6-channel mixer holds a 2x 300W amplifier. Giving the user a complete unit as base for this setup. With 4 microphone and line inputs it's ideal for live performers on stage. 16 digital effects give you plenty of room to fine tune your sound.
2x 300W power amplifier
MP3 player with USB port and SD slot
+48V phantom power
Stereo 5-band equalizer
16 digital effects (DSP)
PFL per channel
RCA line input
Tone control per channel
6.3mm outputs (L+R)
Output power: 4 Ohms 2x 300W
Output power: 8 Ohms 2x 240W
Frequency response 20Hz - 20kHz
THD <0.1%
Equalizer 5 Band (± 12dB)
Equalizer: High ± 15dB / 12kHz
Equalizer: Low ± 15dB / 80Hz
Input:Line +5dB ~ -40dB
Input:Mic -15dB ~ -60dB
Output level +12dB (3V)
Output:Record 0dB (775mV)
Headphone output 300mW @ 32 Ohm
Signal to noise ratio >90dB
Power supply 220~240Vac / 50Hz
Dimensions 320 x 297 x 132mm
Weight 6kg
