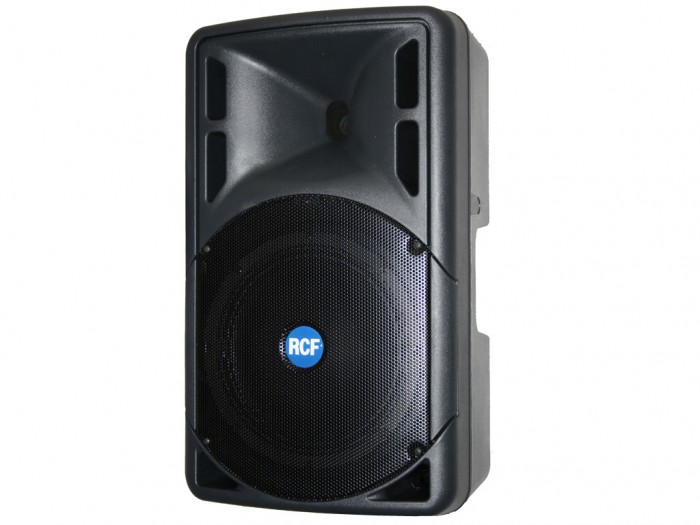

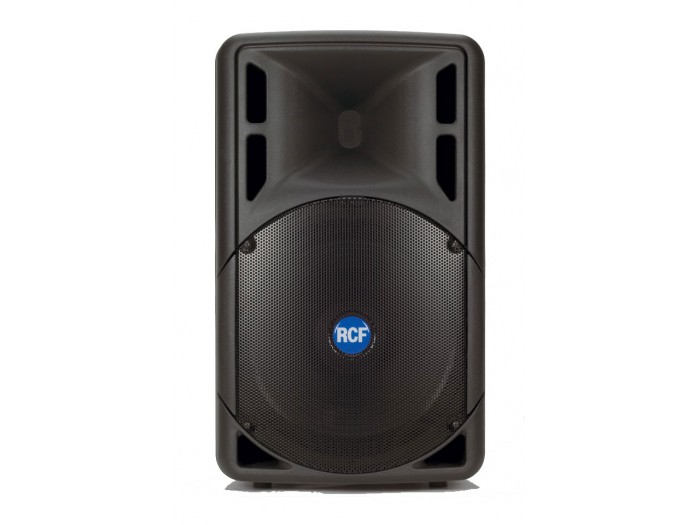

RCF ART 322 A, active Fullrangespeaker 12" 2", biamped, 350 Watt Bass + 50 Watt High-Frequency, no fan, 90°x60° 12" RCF-Precision-Woofer with 2,5" Diaphragma and 2" neodym-driver with titan-dome, 128 db max. electric EQ, phase-alignment, limiter and protection, XLR-Klinke Combi-Input mic/line switchable, XLR-parallel-out, plastic-housing and stands for wedge-application, pole mount adapter, 4x M10 fly points, optional infrared remote control for EQ-Setup, Mute and volume, dimetions H/B/T 680/405/345 (mm), 23 Kg
With the perfect blend of the fast, high efficiency transducers, ART 322-A offers an extremely linear response and precise, deep low frequency control. The ideal cabinet for main front of house PA and monitoring, ART 322-A is the perfect solution where the power of a 2" compression driver is required for longer throw applications in larger venues.
RCF ART 322-A is an active, wide dispersion 2 way sound reinforcement speaker. It integrates a high power 400 Watt amplifier, with a complete electronic processor section and RCF Precision Series low distortion, high power transducers.The result is a compact, high power accurate system, incredible for linearity and vocal intelligibility.
This new high power 12"inch woofer is the result of the latest refinement in years of RCF experience in compact 2 way speaker manufacturing, resulting in a fast and accurate reproduction of the midbass frequency range and tight deep bass. Features a 3" inside/outside voice coil to minimize power compression and extend the life of this product.
The compression driver uses a 0.05 mm pure transparent midrange sound and extreme fidelity in high frequencies reproduction.
A generous 2 step class H TAED amplifier design is used to power the low frequencies and the compression driver amplifier is a warm and clear class AB design.The input section offers a XLR and Jack input connector that is switchable from microphone to line levels. A master volume knob and a useful XLR loop-through link guarantee the best versatility. The processor section includes active crossover,systemequalization,transducer phase alignment, limiter and protection functions.The system is visually monitored from 4 status LEDs.
All components are housed in a strong, lightweight, polypropylene composite enclosure.Woofer and compression driver throat are protected from a strong, powder coated, metal grille.The cabinet shape is perfect for monitoring applications. The cabinet features four M 10 threaded fly points, a 35 mm pole mount adaptor, two side handles and an ergonomic top handle.
Features:
400 watt Monolithic bi-amplification, 350 watt low frequency and 50 watt high frequency power
128dB max SPL
Wide dispersion, 90 x 60 low distortion, constant directivity horn
12" high power woofer, 75mm inside/outside aluminium coil
2" neodymium, titanium dome, high frequency driver
Electronic equalization, phase alignment, limiter and protection
Mic/Line XLR and Jack input, XLR signal output
2 side handles and 1 ergonomic top handle for easy transportation and positioning
Four M10 fly points and built in pole mount adaptor
Optional Infrared remote control for volume, mute and Eq adjustment
