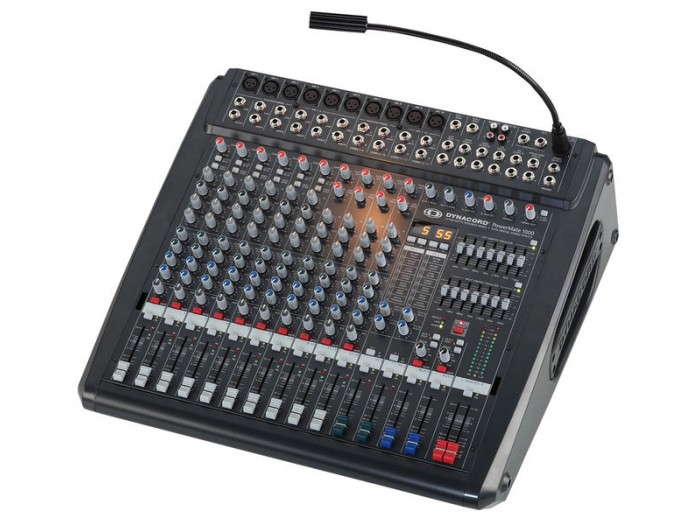

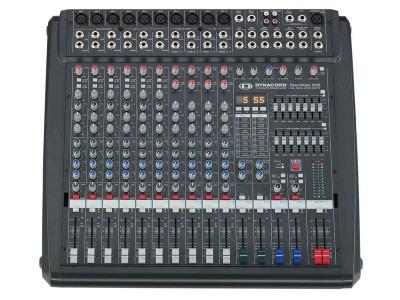

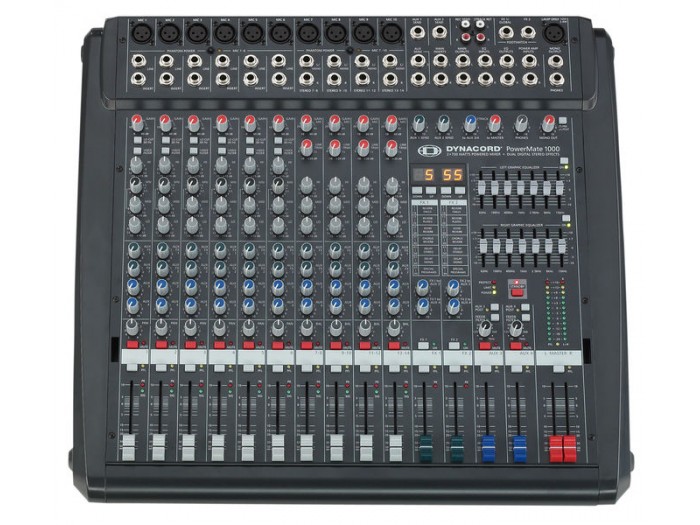

Dynacord POWERMATE 1000-2 **

Dynacord Powermate 1000-2 - 2x 700watts/4ohm, 2x 870watts/2.6ohm, 6x mic kanala, 4x mic/stereo kanala, 2x 24bit stereo efekt procesor, 4x auxes, mute switches (po kanalu), 7 band master EQ, feedback filter, optional 19" rackmount kit available, dimensions 514,5 x 478,7 x 210,3 mm, Weight: 20kg.

     Specifications Maximum Midband Output Power, 1 kHz, THD=1%, Dual Channel: into 4 Ohms 2x700W, into 8 Ohms 2x430W
     Rated Output Power, THD=0.1%, Single Channel: into 4 Ohms 2x700W, into 8 Ohms 2x350W
     Maximum Midband Output Power, 1 kHz, THD=1%, Single Channel: into 4 Ohms 2x870W, into 8 Ohms 2x500W
     Maximum Output Voltage of power amplifier, no load 70 Vrms
     THD at 1kHz, MBW=80kHz:
     MIC input to Main L/R output, +16 dBu, typical < 0.005%
     Power amplifier input to Speaker L/R output < 0.01%
     DIM 30, power amplifier < 0.01%
     IMD-SMPTE, power amplifier, 60Hz, 7 kHz < 0.01%
     Frequency Response, -3dB ref. 1kHz:
     Any input to any Mixer output 15Hz ... 80kHz
     Any input to Speaker L/R output 20Hz ... 70kHz
     Crosstalk, 1kHz:
     Fader and AUX-Send attenuation > 85 dB
     Channel to channel > 80 dB
     CMRR, MIC input, 1kHz > 80 dB
     Input Sensitivity, all level controls in max. position:
     MIC input -74 dBu (155 μV)
     LINE Input (Mono) -54 dBu (1.55 mV)
     LINE Input (Stereo) -34 dBu (15.5 mV)
     Power Amplifier Input +6 dBu (1.55 V)
     Maximum Level, mixing desk:
     MIC inputs + 21 dBu
     Mono Line inputs + 41 dBu
     Stereo Line inputs + 30 dBu
     All other inputs + 22 dBu
     Record Send output + 14 dBu
     All other outputs + 22 dBu
     Input Impedances:
     MIC 2 kOhms
     Insert Return 2,2 kOhms
     EQ Input and 2 Track Return 8 kOhms
     All other inputs > 15 kOhms
     Output Impedances:
     Record Send 1 kOhm
     Phones 47 Ohms
     All other outputs 75 Ohms
     Equivalent Input Noise, MIC Input, A-weighted, 150 Ohms -130 dBu
     Noise, Channel inputs to Main L/R outputs, A-weighted:
     Master fader down -95 dBu
     Master fader 0 dB, Channel fader down -90 dBu
     Master fader 0 dB, Channel fader 0 dB, Channel gain unity -83 dBu
     Signal/Noise-Ratio, power amplifier, A-weighted 105 dB
     Equalization:
     LO Shelving ± 15 dB / 60 Hz
     MID Peaking, mono inputs ± 15 dB/100Hz.... 8 kHz
     MID Peaking, stereo inputs ± 12 dB / 2.4 kHz
     HI Shelving ± 15 dB / 12 kHz
     Master EQ, 2x7-band, 63, 125, 400, 1k, 2k5, 6k, 12k Hz ± 10 dB
     Phantom power: 48V DC
     Power Consumption at 1/8 maximum output power, 4 Ohms 640 W
     Dimensions, (WxHxD), mm 514.5 x 210.3 x 478.7
     Weight, without lid 20kg
