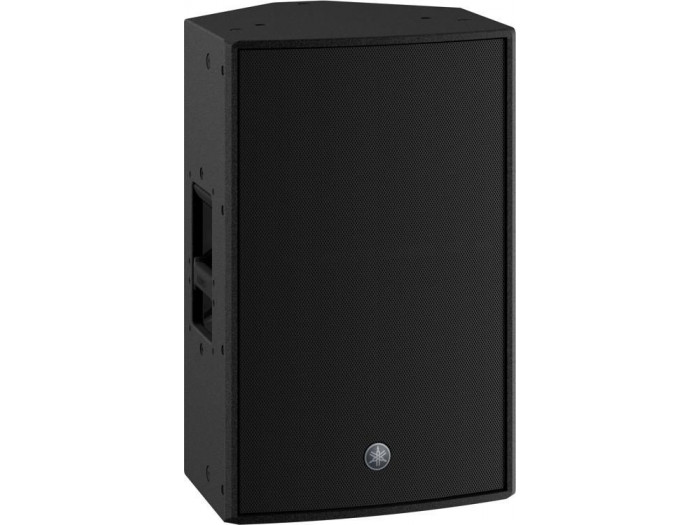

Yamaha DZR12

The Yamaha DZR12 offers superb clarity and best-in-class SPL performance. This 2-way bi-amped PA speaker boasts a high-power 2,000-watt Class D amplifier, a 39Hz–20kHz frequency range, and can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. As a powered PA speaker, the DZR12 integrates with any configuration. It can also operate effectively as a stage monitor. The DZR12 employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating.

• Powered: Yes
• Power Configuration: Bi-amped
• Channels: 2
• LF Driver Size: 12" Cone, 3" Voice Coil with Neodymium Magnet
• HF Driver Size: 2" HF Compression Driver, 1" Throat
• LF Driver Power Amp: 1000W Peak, 920W Continuous
• HF Driver Power Amp: 1000W Peak, 380W Continuous
• Total Power: 2000W Class D Peak, 1300W Continuous

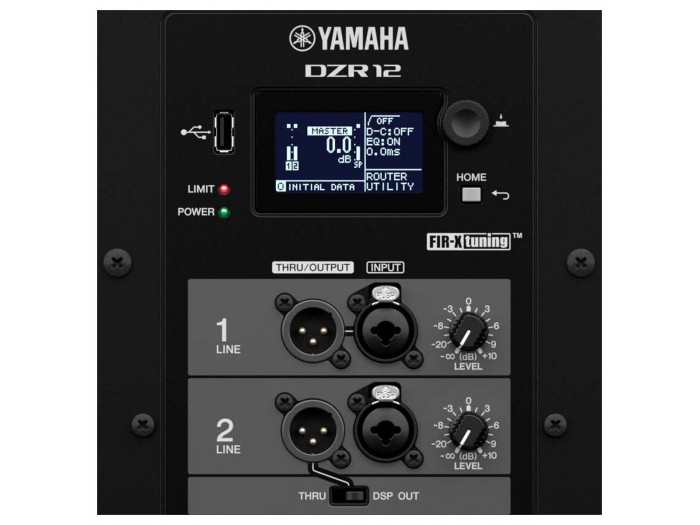

• Inputs: 2 x XLR-1/4" combo (line in)
• Outputs: 2 x XLR (thru/output)
• USB: 1 x Type A
• Frequency Range: 39Hz-20khz (-10 dB)
• Crossover Frequency: 1.8kHz
• Maximum Peak SPL: 139 dB SPL @ 1m
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 60 Degrees
• Signal Processing: PEQ, Delay, Routing, 8 User Presets
• Enclosure Material: Plywood Cabinet with Polyurea Coating

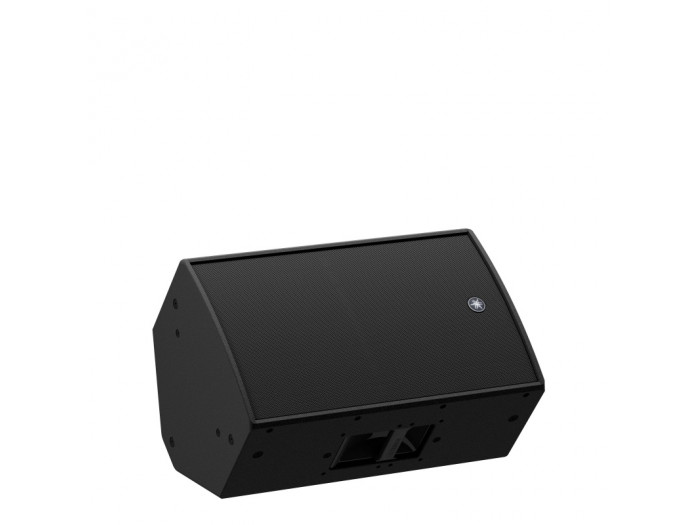

• Mounting Options: Pole: 2 x 1.37" (35mm) socket; Fly: 12 x M10; Floor Wedge
• Power Source: Standard IEC AC cable
• Height: 25.4"
• Width: 16.1"
• Depth: 15.5"
• Weight: 47.2 lbs.
• Manufacturer Part Number: DZR12
