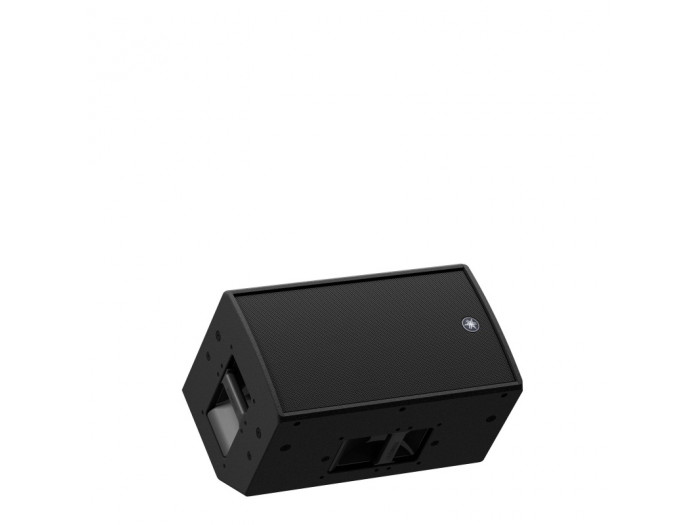

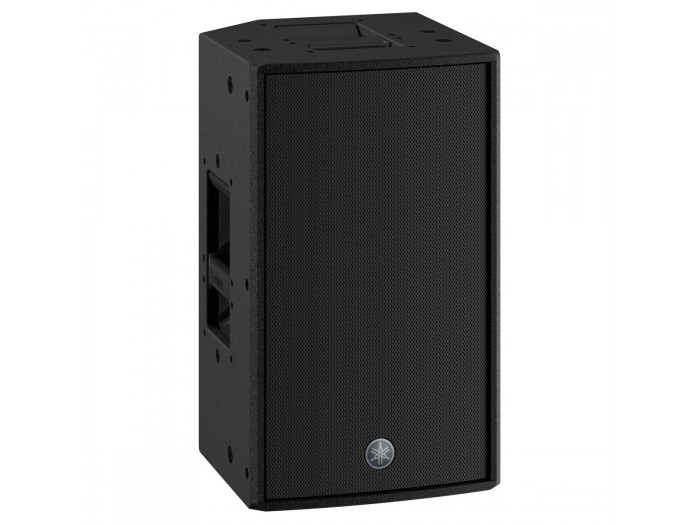

Yamaha DZR10

The Yamaha DZR10 offers superb clarity and best-in-class SPL performance. This 2-way bi-amped PA speaker boasts a high-power 2,000-watt Class D amplifier, a 44Hz–20kHz frequency range, and can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. As a powered PA speaker, the DZR10 integrates with any configuration. It can also operate effectively as a stage monitor. The DZR10 employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating.

• Powered: Yes
• Power Configuration: Bi-amped
• Channels: 2
• LF Driver Size: 10" Cone, 3" Voice Coil with Neodymium Magnet
• HF Driver Size: 2" HF Compression Driver, 1" Throat
• LF Driver Power Amp: 1000W Peak, 920W Continuous
• HF Driver Power Amp: 1000W Peak, 380W Continuous
• Total Power: 2000W Class D Peak, 1300W Continuous

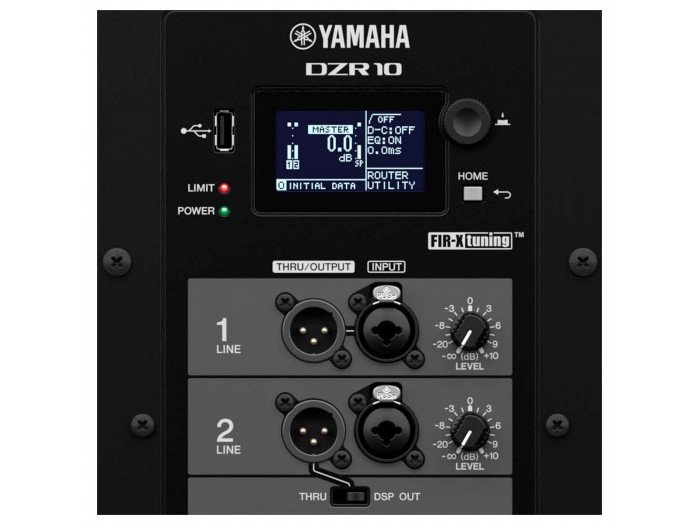

• Inputs: 2 x XLR-1/4" combo (line in)
• Outputs: 2 x XLR (thru/output)
• USB: 1 x Type A
• Frequency Range: 44Hz-20kHz (-10 dB)
• Crossover Frequency: 1.8kHz
• Maximum Peak SPL: 137 dB SPL @ 1m
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 60 Degrees
• Signal Processing: PEQ, Delay, Routing, 8 User Presets
• Enclosure Material: Plywood Cabinet with Polyurea Coating
• Mounting Options: Pole: 2 x 1.37" (35mm) socket; Fly: 8 x M10, 2 x M8; Floor Wedge
• Power Source: Standard IEC AC cable
• Height: 21.1" (with feet)
• Width: 12.4"
• Depth: 13.6"
• Weight: 39.5 lbs.
• Manufacturer Part Number: DZR10
