Korg microKORG MK1

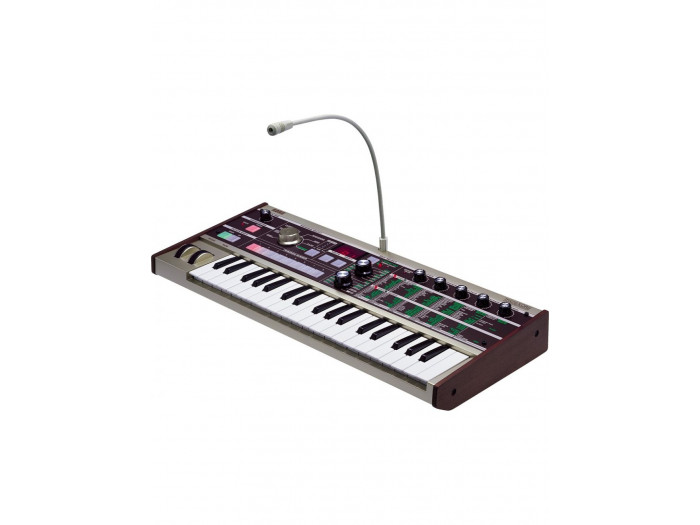

37 mini-keys with velocity sensing 4-Voice Analog Modeling synth engine 128 completely editable presets 5 Assignable, tweak-able, realtime edit knobs 8-Band Vocoder with gooseneck mic

Unique Formant Hold and Formant Shift Vocoder features Interactive arpeggiator with selectable steps External audio processing 3 Effects: Chorus/Flanger, Phaser, and Ensemble 3 Delay Modes plus a 2-Band EQ High-visibility LED display and indicators Illuminated buttons

Retro-styling with solid wood endblocks Pitch Bend & Modulation wheels Battery-powered portability With the microKORG analog modeling synthesizer, hardware matters. The built-in vocoder and selectable-step arpeggiator add a new dimension to performing and recording without the need to master new technologies.

External sounds can be processed by the microKORG’s filter and more. With dedicated knobs and an index to the sound-editing parameters available on the front panel, microKORG allows each player to go as deep into the sound engine as desired. But for many musicians, just choosing the sounds from the convenient categories provides instant satisfaction.

Sound Generation Method: Analog Modeling Synthesis System Synthesizer Program: Multi Timbral: 2 (max, Normal/Dual Mode) Voices: 4 voices Sound Source: 2 Oscillator + Noise Generator Multi Mode Filter (-24dB/oct LPF, -12dB/oct LPF/BPF/HPF) EG x2, LFO x2, Virtual Patch x4 Vocoder Program: Voices: 4 voices Sound Source: 1 Oscillator + Noise Generator EG x1 LFO x2 8 Channels vocoder Level and pan of each channel can be edited Formant Shift function General Specifications: Programs: 128 programs Effects: Modulation effects (3 types) Delay (3 types) Equalizer Arpeggiator: 6 types Keyboard: 37 Keys (mini-keyboard, velocity sensitive) Inputs: AUDIO IN 1, and 2 Level switch: LINE/MIC [AUDIO IN 1, 2 (LINE)] [AUDIO IN 2 (MIC)] Outputs: L/MONO, R and Headphones MIDI: IN, OUT and THRU Display: 3 characters x1 line with 8 segment LED Power Supply: DC 9 V (AC adapter), or six AA alkaline batteries (sold separately) Power Consumption: 6.4 Watt maximum Dimensions: 20.63"(W) x 9.13"(D) x 2.76"(H) 524mm(W) x 232mm(D) x 70mm(H) Weight: 4.85 lbs. 2.2 kg Accessories: AC adapter (DC 9 V, 600 mA) Condenser Microphone
