SPECIFICATIONS |
Modes |
11 modes |
Nominal Input Level |
INPUT A(MONO), INPUT B: -20 dBu |
Maximum Input Level |
INPUT A(MONO), INPUT B: +7 dBu |
Input Impedance |
INPUT A(MONO), INPUT B: 1 M ohm |
Nominal Output Level |
OUTPUT A(MONO), OUTPUT B: -20 dBu |
Maximum Output Level |
OUTPUT A(MONO), OUTPUT B: +7 dBu |
Output Impedance |
OUTPUT A(MONO), OUTPUT B: 1 k ohm |
Recommended Load Impedance |
OUTPUT A(MONO), OUTPUT B: 10 k ohms or greater |
Bypass |
Buffered bypass |

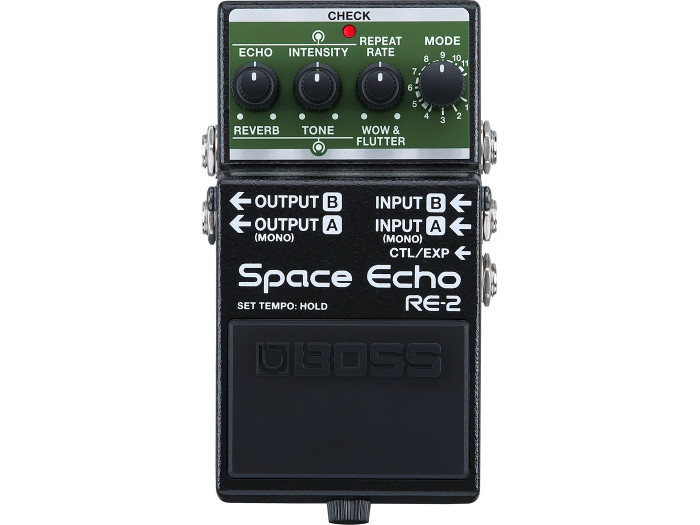

Controls |
MODE knob |
REPEAT RATE knob |
WOW & FLUTTER knob |
INTENSITY knob |
TONE knob |
ECHO knob |
REVERB knob |
CARRYOVER switch |
Pedal switch |
Indicator |
CHECK indicator (Used for indication of check battery) |
Connectors |
INPUT A(MONO) jack, INTPUT B jack, OUTPUT A(MONO) jack, OUTPUT B jack:
1/4-inch phone type |
CTL/EXP jack: 1/4-inch TRS phone type |
DC IN jack |
Power Supply |
Alkaline battery (9 V, 6LR61) |
AC adaptor (PSA series: sold separately) |
Current Draw |
75 mA |
Expected battery life under continuous use |
Alkaline: Approx. 4.5 hours |
*These figures will vary depending on the actual conditions of use. |
Accessories |
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") |
Dry battery (9 V, 6LR61) |
Options (sold separately) |
AC adaptor: PSA series |
Footswitch: FS-5U |
Dual footswitch: FS-6, FS-7 |
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5 |
SIZE AND WEIGHT |
Width |
73 mm |
2-7/8 inches |
Depth |
129 mm |
5-1/8 inches |
Height |
59 mm |
2-3/8 inches |
Weight (including battery) |
450 g |
1 lb |
* 0 dBu = 0.775 Vrms |
*The specifications are subject to change without notice. |
