Home › Ozvučenja › Mikseri › Digitalni mikseri › Yamaha DM3S (Standard)

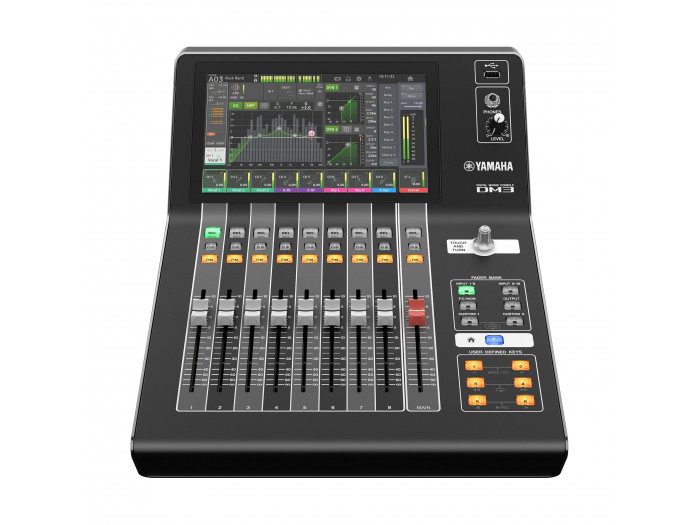

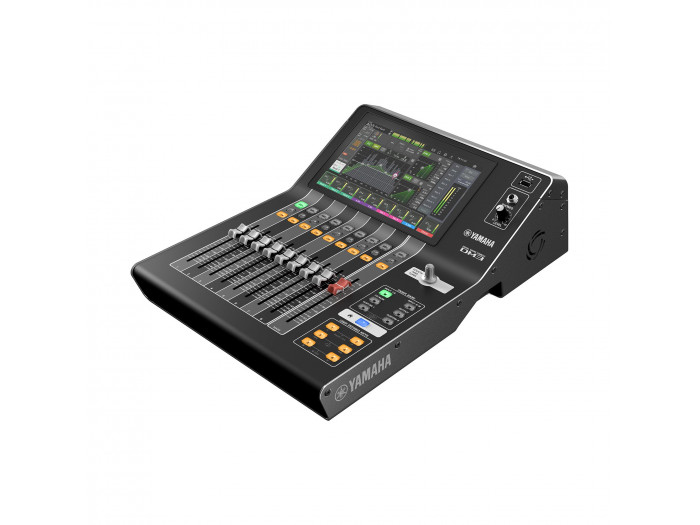

Yamaha DM3S (Standard)

[klikni na sliku za uvećan prikaz]

Podeli

Naša cena:

211.990,00 DIN

255.410,00 DIN

U cenu je uračunat iznos PDV-a.

pogledaj ostale Yamaha proizvode

Odštampaj stranicu

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

The portable DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.

8 + 1 fader configuration
9-inch multi-touch screen
Input mixing channels: 16 mono + 1 stereo + 2 FX return
Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
USB: 18 inputs, and 18 outputs
18 Effects, and GEQ on Mix 1-6 and Stereo channels
Sampling rate: 48kHz/96kHz
Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
Net weight: 6.5 kg

Karakteristike:

Mixing Capacity	Input Channels	16 mono + 1 stereo + 2 FX return
	Mix Buses	6
	Matrices	2 (Supports Input to Matrix)
	Stereo Buses	1
	FX Buses	2
	Cue Buses	1
General specifications

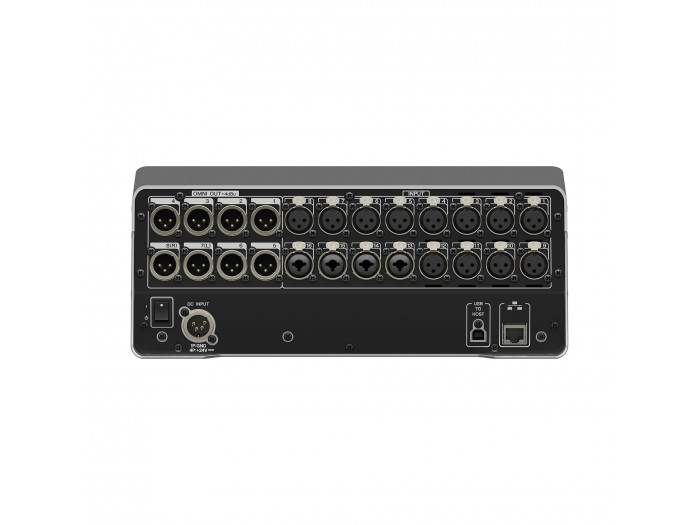

I/O Connectors	Analog Input	16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
	Analog Output	8 (XLR)
	Dante	-
	Network	1 (RJ-45)
	USB TO HOST	1 (USB Type-B, USB2.0)
	USB TO DEVICE	1 (USB Type-A)
	Phones	1 (TRS Phones)
	DC	1 (XLR 4pin, DC power IN)
User Interface		1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
Recording & Playback	PC/Mac	Recording 18 track, Playback 18 track
Recording & Playback	USB storage device	Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
Sampling frequency rate		96 kHz / 48 kHz
Signal delay		Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
Frequency response		+0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
Total harmonic distortion		Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1
Hum & noise level	Equivalent input noise	-126 dBu typ., Input Gain= Max.
Hum & noise level	Residual output noise	-84 dBu, ST main off*2
Dynamic range		110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Crosstalk		-100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3
Power requirements		DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
Power consumption		43 W
Dimensions	W	320 mm (12.6")
	H	140 mm (5.6")
	D	455 mm (18.0")
Net weight		6.5 kg (14.3 lb)
Included Accessories		Owner's Manual, Power Adapter, Download Information
Accessories		RK-DM3
Operating temperature		0 - 40 °C
Storage temperature		-20 - 60 °C
