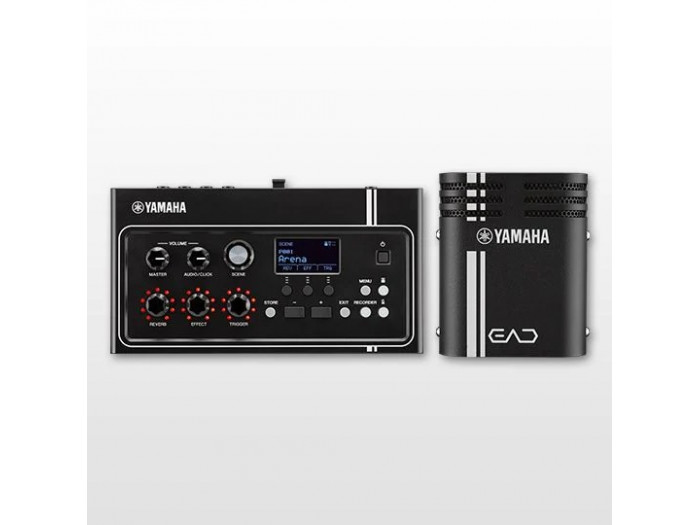

The EAD10 electronic acoustic drum module enhances the way you practice, record and perform with your acoustic drums.
| Dimensions | Width | 260 mm (main unit), 76 mm (sensor unit) |
| Height | 63 mm (main unit), 88 mm (sensor unit) | |
| Depth | 138 mm (main unit), 78 mm (sensor unit) | |
| Weight | Weight | 654 g (main unit), 464 g (sensor unit) |
| Tone generator | ||
| Scenes | Preset: 50 User: 200 | |
| Reverb | 11 | |
| Effects | Mic: 21, Trigger: 10 | |
| Trigger Sounds | Tone generator | AWM2 |
| Maximum polyphony | 64 | |
| Voices | 757 | |
| Recorder | ||
| Recording time | Internal memory | Approx. 1 min 30 sec |
| USB flash drive | Approx. 90 min/file | |
| Recording Format | Record/playback | WAV (44.1 kHz, 16 bit, stereo) |
| Audio Files | ||
| Import limit | Up to 100 | |
| Playback sample format | 44.1 kHz | |
| Wave memory | 32 MB | |
| Maximum loadable sample size | 1 mono sample: 1.75 MB, 1 stereo sample: 3.5 MB | |
| sample format | WAV (16 bit) | |
| Click-track | ||
| Tempo | 30−300 BPM, tap tempo function | |
| Time signatures | 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16 | |
| Subdivisions | Accents, quarter notes, eighth notes, sixteenth notes, and eighth-note triplets | |
| Functions | ||
| Functions | Trigger sensitivity adjustment, USB audio/MIDI, headphone EQ, metronome, auto power off | |
| Connectors | ||
| Connectors | DC IN (12 V), PHONES (standard stereo phone), AUX IN (stereo mini), OUTPUT L/MONO, R (standard mono phone), USB TO DEVICE, USB TO HOST | |
| Sensor Unit | For Trigger sensor | A (standard stereo phone) |
| For Mic sensor | B (standard stereo phone) | |
| Trigger input | Stereo (L: trigger, R:trigger) | 1 KICK/2 (also serves as A), 3 SNARE/4 (standard stereo phone) |
| Three-zone (L: trigger, R: rim switch) | 5, 6 (standard stereo phone) | |
| Foot Pedal | FOOT SW (standard stereo phone) | |
| Sensor outputs | For Trigger sensor | A (standard phone) |
| For Mic sensor | B (standard stereo phone) | |
| Sensor Types | ||
| Microphone | High SPL mic × 2 | |
| Trigger | Exclusive for bass drum × 1 | |
| Other | ||
| Included accessories | Owner’s manual, PA-150 (or an equivalent recommended by Yamaha), module holder, module holder wing bolts (× 2), connector cables (1 pair), cable bands (× 3), adhesive cushions (× 2) | |
