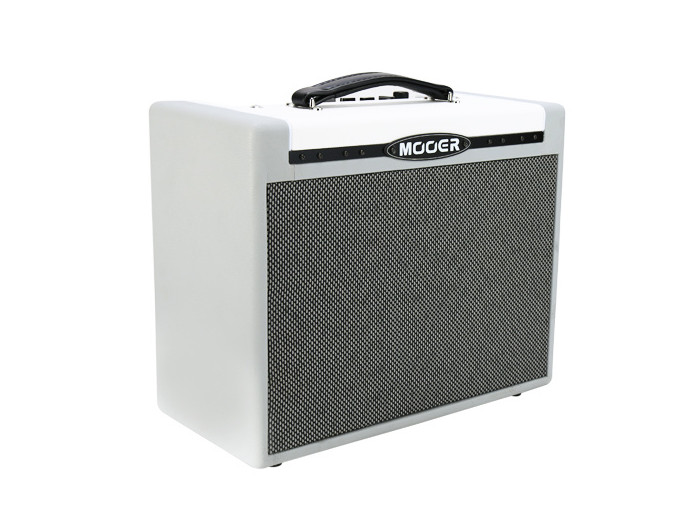

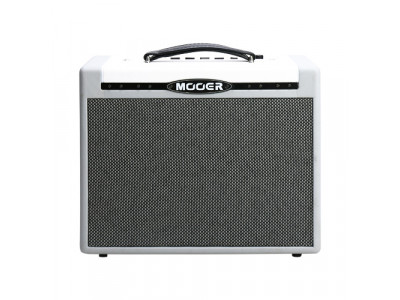

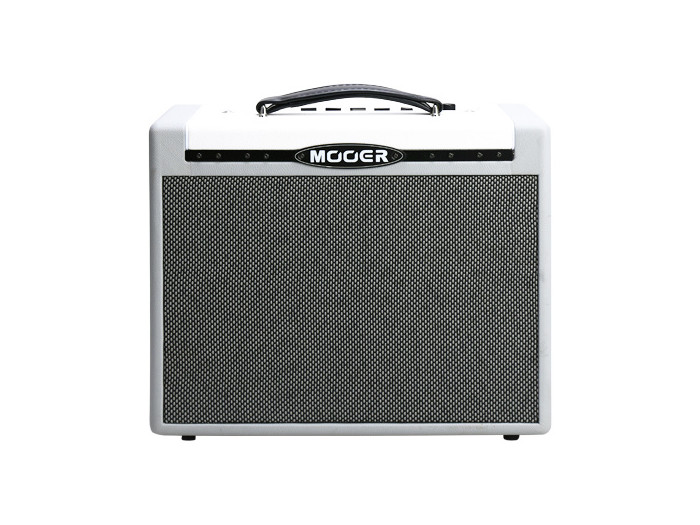

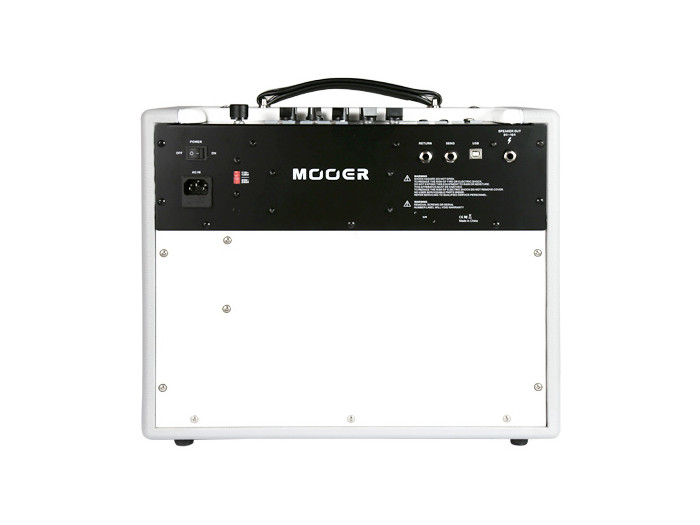

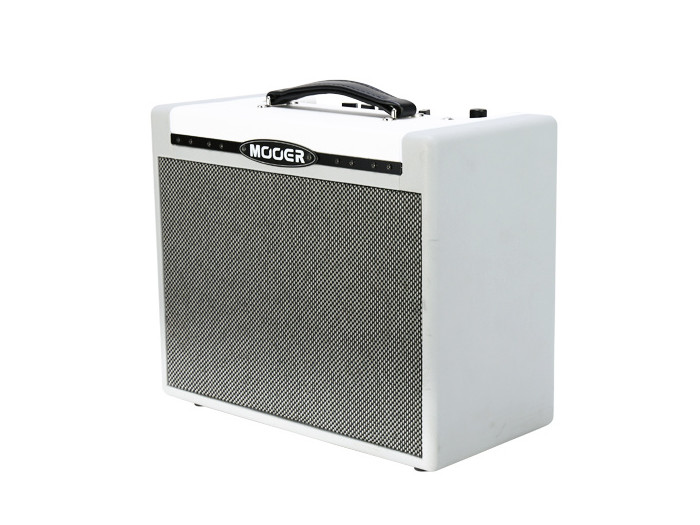

MOOER SD30

Each model in the SD series comes fully loaded with a whole host of special-features and effects, that provide everything you need to craft incredible guitar tones

for creating music on-stage or in the practice room. These tones can be stored within 40 preset slots and easily recalled using the proprietary wireless footswitch.

SD amps have a unique JAM section that contains a whole suite of tools for solo performers and creative aficionados alike, such as an integrated looper,

syncable drum machine and Bluetooth

connection for playback of your favorite audio tracks from an external device.

The combo amps currently available in 30Watt and 75Watt versions, house custom-built guitar speakers,

designed to deliver rich harmonics and enhanced feel with clarity, articulation and

dynamics throughout the amplifiers full volume range.

Input: 1 /4” mono audio jack

AUX IN 1 /8” stereo audio jack

SEND/RETURN 1/4” mono audio jack

HEADPHONE OUT: 1 /8” stereo audio jack

SPEAKER OUT 8Ω-16Ω 30Watts 1/8” mono jack

(unbalanced speaker cable)

POWER Amp 30watt，class A/B

USB Type-B

Power supply: 220V-240V AC /100V-120V AC

Power Fuse Contains the main power protection fuse and a backup

replacement fuse. If the amplifier cannot power on, inspect the

protection fuse and replace if necessary.

T500mA - 220V-240V

T1000mA- 100V-120V

Dimension: 420mm x 217mm x 368mm

Weight: 8.3kg

SPEAKER: 1 x 8" Custom 50W 8Ω Driver

Amp Models 25

Effects 28 (DS/OD:8; MOD:9; DELAY:5; REVERB:6 )

LOOPER 150 seconds

DRUM PATTERNS 40

METRONOME 10

PRESETS: 40

Accessories: Owner’s manual; Power Cable
