THE EDGE DELAY PROVIDES YOU WITH 3 UNIQUE DELAYS, EACH INCLUDING ACURATE CONTROL OVER ITS SONIC CHARACTER AND FEEL. CLEAR, STUDIO-QUALITY DIGITAL DELAYS. SATURATED AND FLUCTUATING SOUNDS OF TAPE DELAY MACHINES. WARM AND FUZZY ANALOG STYLE REPEATS.

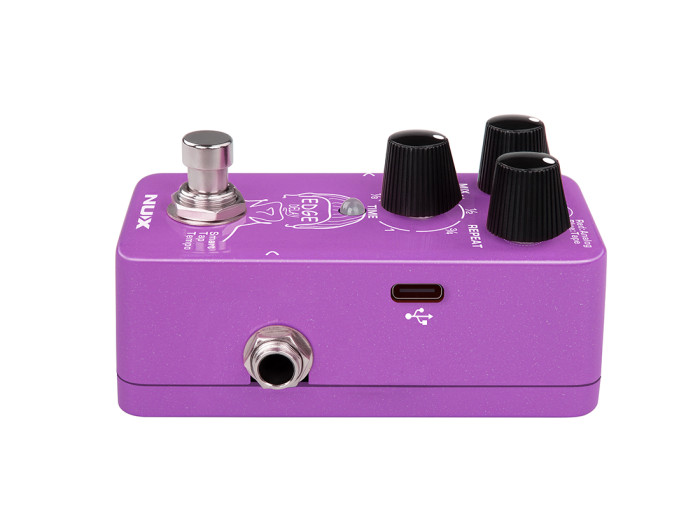

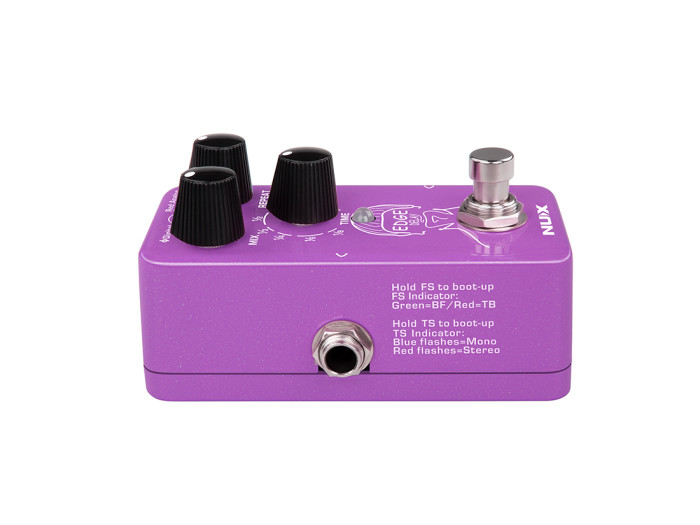

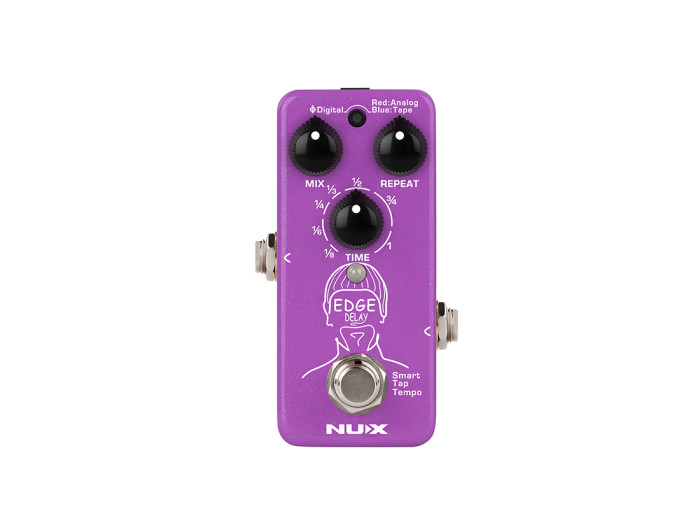

The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including ΦPhi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch.
Features
- 3 delay types in a mini enclosure.
- ΦPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head.
- Analog Delay: BBD Warm sound with natural treble decay.
- Tape Echo: High-frequency saturation and low-end decay.
- Sub-division with Smart Tap Tempo. (Maximum: 1500ms)
- True-bypass or Buffer-bypass(Trails).
- Supports Stereo I/O with TRS Cable.
- Low power consumption. (less than 100mA)
- Analog dry signal for low noise and zero latency.
Specifications
- Input Impedance：1MΩ
- Output Impedance：10kΩ
- Dynamic Range: 103 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit

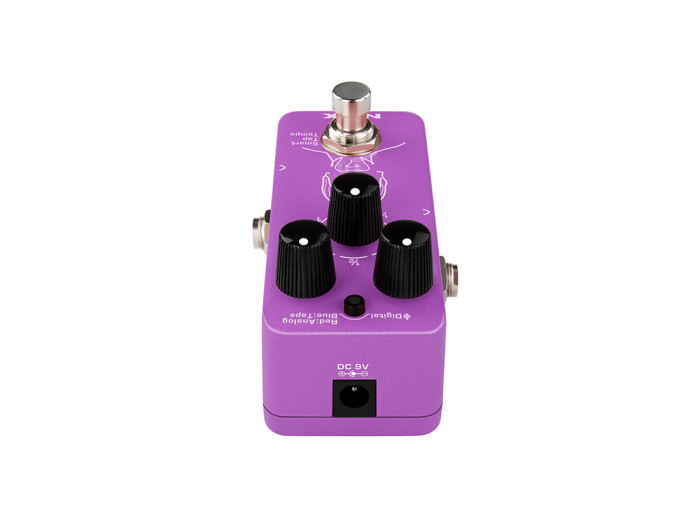

- Power：9V DC(Negative tip, Optional ACD-006A adapter)
Current Draw：less than 100mA
Dimensions：94(L)X51(W)X53(H)mm
Weight：175g
