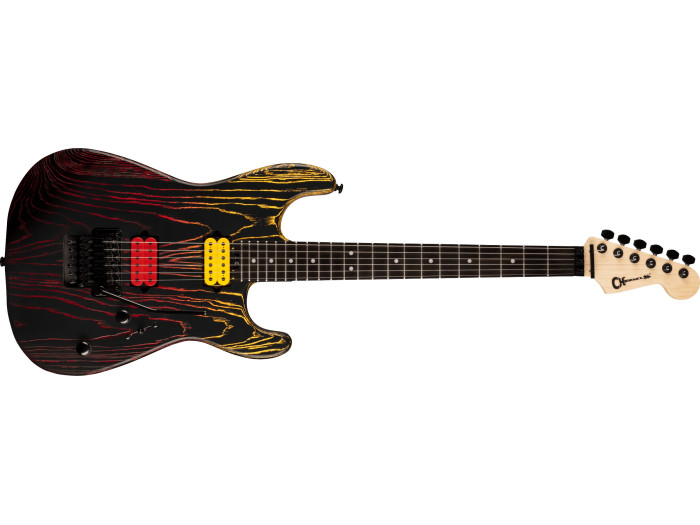

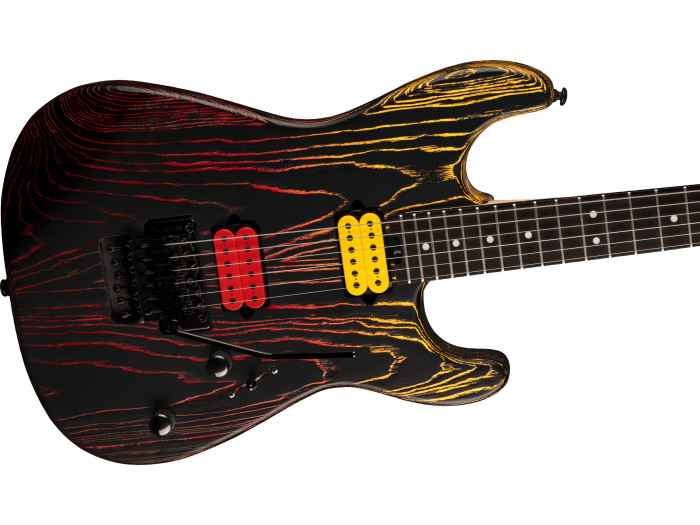

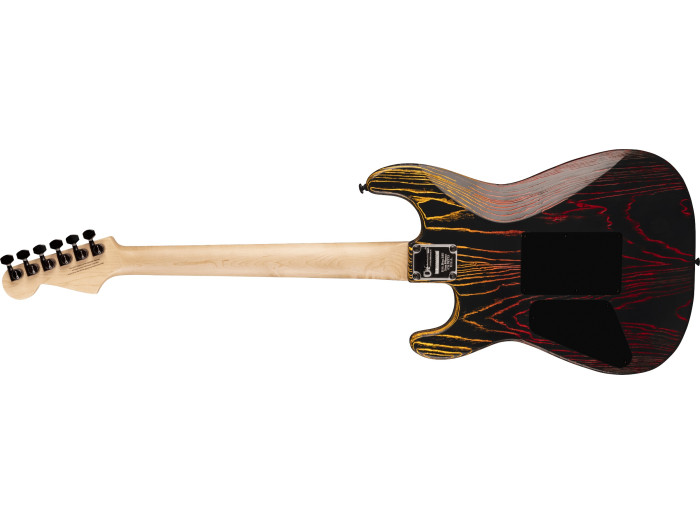

Charvel PRO-MOD SAN DIMAS STYLE 1 HH FR E ASH, EBONY FINGERBOARD, SUNBURN

 The Pro-Mod Series continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the Pro-Mod San Dimas® Style 1 HH FR E Ash boasts scorching sound, stunning style and grin-inducing playing feel and performance.

General Specifications

• Model Number: 2970011504
• Series: Pro-Mod
• Color: Sunburn
• Number of Strings: 6
• Orientation: Right-Hand

Electronics

• Bridge Pickup: DiMarzio® Super Distortion® DP100
• Neck Pickup: DiMarzio® PAF Pro® DP151
• Pickup Color: Red (Bridge), Yellow (Neck)
• Controls: Volume (Push/Pull Coil Split), Tone
• Pickup Switching: 3-Position Blade
  • Position 1: Bridge Pickup
  • Position 2: Both Inner Coils
  • Position 3: Neck Pickup
  • Split Engaged:
    • Position 1: Bridge Outer Coil
    • Position 2: Both Outer Coils
    • Position 3: Neck Outer Coil
• Pickup Configuration: HH

Body

• Body Finish: Satin
• Body Shape: San Dimas® Style 1
• Body Material: Ash

Hardware

• Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
• Hardware Finish: Black
• Tremolo Arm: Floyd Rose® 1000 Series Locking
• Tuning Machines: Charvel®-Branded Die-Cast
• Pickguard: None
• Control Knobs: Dome-Style
• Switch Tip: Black
• Saddle Height Wrench: N/A

Neck

• Neck Material: Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Satin
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Binding: None - Rolled Fingerboard Edges
• Scale Length: 25.5" (64.77 cm)
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Ebony
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Floyd Rose® 1000 Series Locking
• Nut Width: 1.6875" (42.86 mm)
• Position Inlays: White Dot
• Side Dots: White
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Trees: Floyd Rose® Retainer Bar
• Headstock: Licensed Fender® Stratocaster®
• Neck Plate: 4-Bolt Serialized

Miscellaneous

• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Standard
• Case/Gig Bag: Optional Charvel® Style 1/2 Economy Case (p/n 099-0612-100); Optional Charvel® Multi-Fit Gig Bag (p/n 299-1414-006)
