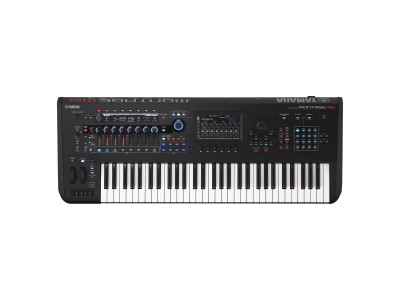

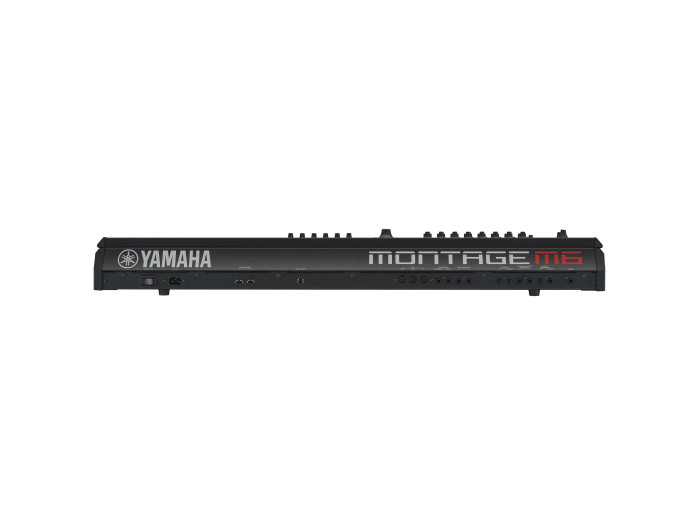

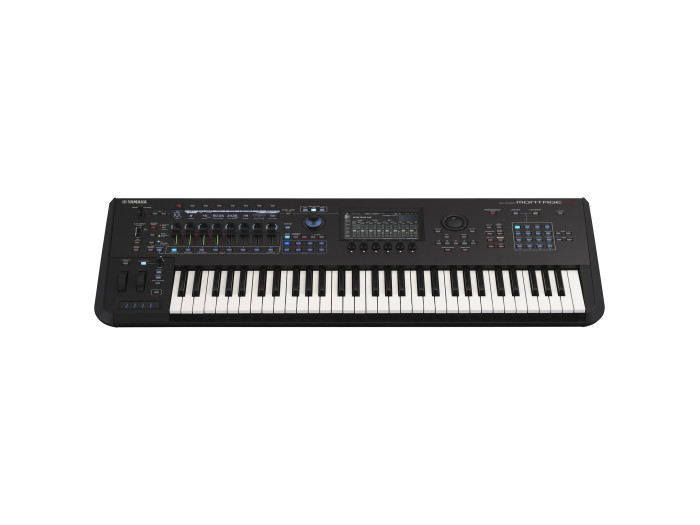

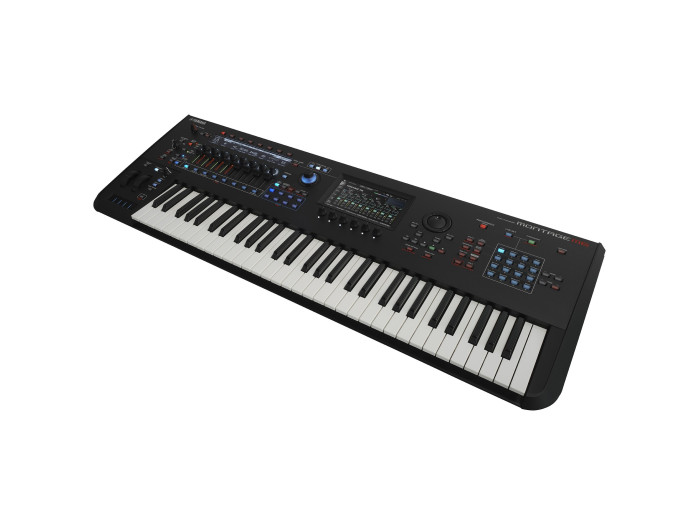

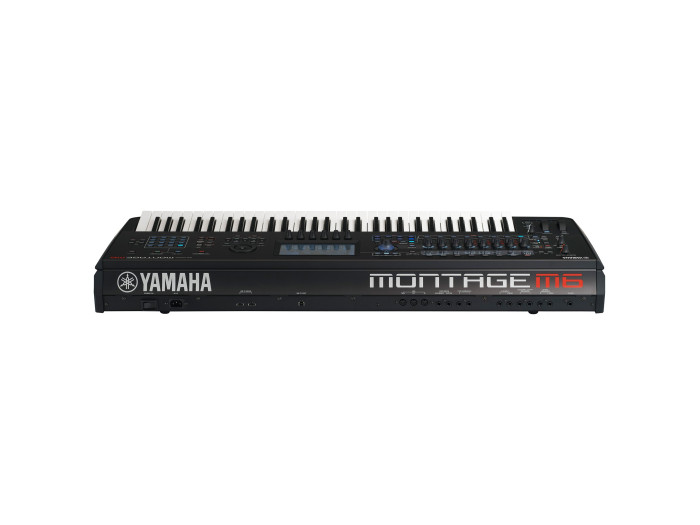

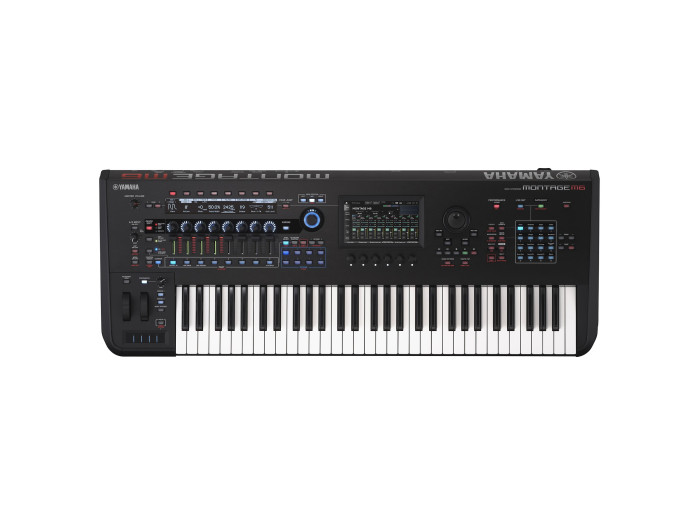

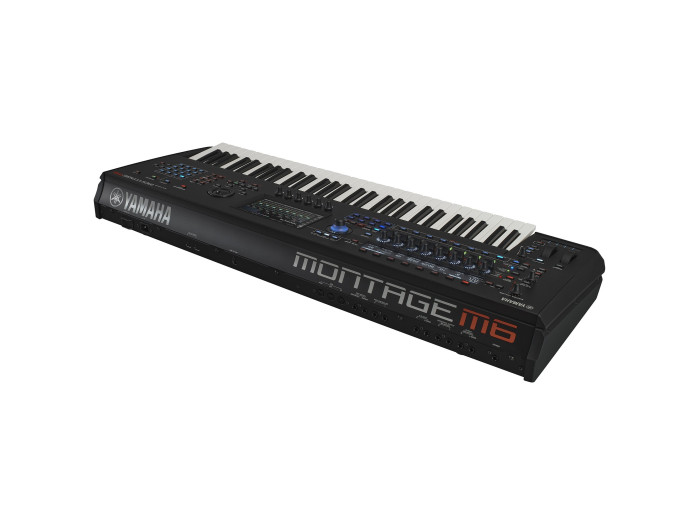

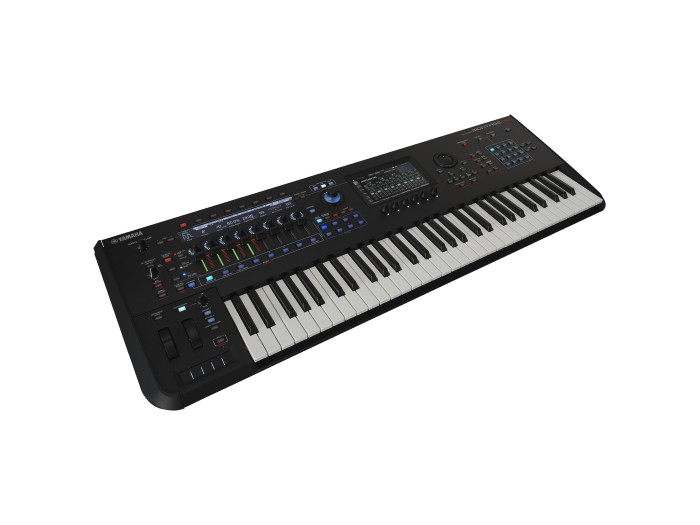

Yamaha Montage M6

NA LAGERU! NEOTPAKOVANO!

MONTAGE M6, the next-generation flagship synthesizer from Yamaha. Realize amazing sound with its three engines that recreate warm vintage analog synths, cutting-edge FM synths, and ultra-realistic instruments. The Motion Control engine enhances these capabilities, adding a fourth dimension of control to your music making. Unlike traditional hardware synthesizers, MONTAGE M6 seamlessly bridges stage and studio workflows with computer connectivity and integration. Crafted for synthesists needing 61 great-feeling keys and aftertouch, the MONTAGE M6 introduces a new era of sound, control and workflow in music creation.

Size/Weight

• Dimensions:
  • Width: 1,037 mm (40-13/16")
  • Height: 131 mm (5-3/16")
  • Depth: 396 mm (15-9/16")
• Weight: 15.3 kg (33 lbs., 12 oz.)

Packing Box

• Width: 1,223 mm (48-1/8")
• Height: 259 mm (10-3/16")
• Depth: 482 mm (19")

Control Interface

• Keyboard:
  • Number of Keys: 61
  • Type: FSX Keyboard
  • Initial Touch: Yes
  • Aftertouch: Yes (Channel After Touch)

Tone Generator

• Tone Generator: Motion Control Synthesis Engine
  • AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise
• Maximum Polyphony:
  • AWM2: 256 (max.; stereo/mono waveforms)
  • FM-X: 128 (max.)
  • AN-X: 16 (max.)
• Multi-Timbral Capacity: 16 Parts (internal), Audio Input Parts (A/D1, USB1) *1 stereo Part
• Wave: Preset: 10.7 GB (when converted to 16-bit linear format), User: 3.7 GB
• Performance: 3,427 presets
• Filter: 18 types
• Effects:
  • Reverb: 13 types
  • Variation: 88 types
  • Insertion A: 88 types
  • Insertion B: 89 types
  • Master Effect: 26 types
  • Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

Performance Recorder

• Note Capacity:
  • 1 Song/Pattern: Approx. 130,000 notes
  • Store area: Approx. 520,000 notes (Pattern), approx. 520,000 notes (Song)
• Note Resolution: 480 ppq (parts per quarter note)
• Tempo (BPM): 5 – 300
• Sequence Formats: MONTAGE original format, SMF formats 0, 1

Arpeggio

• Parts: 8 Parts simultaneous (max.)
• Preset: 10,922 types or more
• User: 256 types

Sequencer

• Patterns: 128 patterns
• Pattern Tracks: 16 Sequence tracks
• Recording Type: Real-time replace, Real-time overdub

Songs

• Number of Songs: 128
• Tracks: 16 Sequence tracks, Tempo track, Scene track
• Recording Type: Real-time replace, Real-time overdub, Real-time punch in/out

Functions

• USB Audio Interface:
  • [Sampling Frequency = 44.1 kHz]
    • Input: 6 channels (3 stereo channels)
    • Output: 32 channels (16 stereo channels)
  • [Sampling Frequency = 44.1 kHz - 192 kHz]
    • Input: 6 channels (3 stereo channels)
    • Output: 8 channels (4 stereo channels)

Other

• Controllers:
  • Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel, Ribbon Controller, Control Slider x 8, Knob x 8, Super knob, Display knob x 6, Portamento knob, Data Dial, Assignable switch x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch, Ribbon Controller hold switch.
