Korpa
body shape Advanced Auditorium with Advanced Access Cutway body
bracing X-M Bracing
top Solid Sapele top

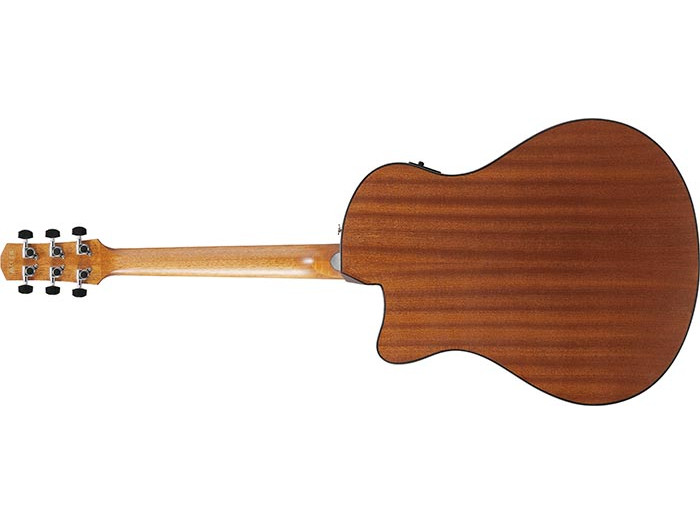

back & sides Sapele back & Sapele sides
neck Low Oval GripOkoume neck
fretboard Purpleheart fretboard
bridge Purpleheart bridge
body binding Rounded body edge binding
inlay White dot inlay
soundhole rosette Black & White multi

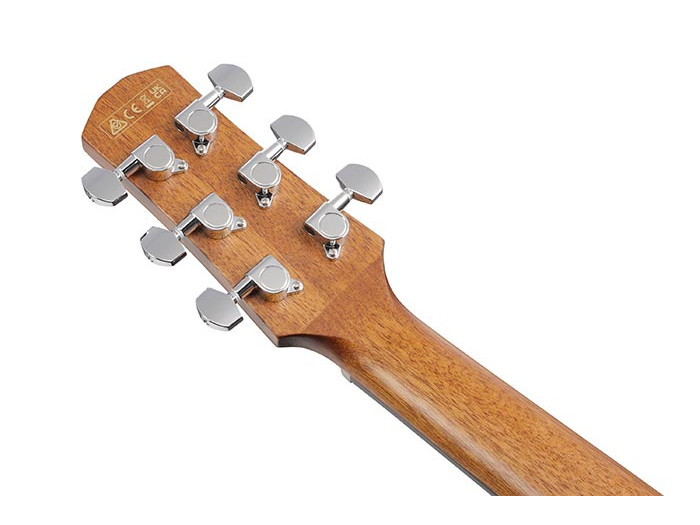

tuning machine Chrome Die-cast tuners (18:1 gear ratio)
number of frets 20
bridge pins Ibanez Advantage™
strings D'Addario® EXP16
string gauge .012/.016/.024/.032/.042/.053
string space 11mm
factory tuning 1E,2B,3G,4D,5A,6E
pickup Ibanez T-bar Undersaddle

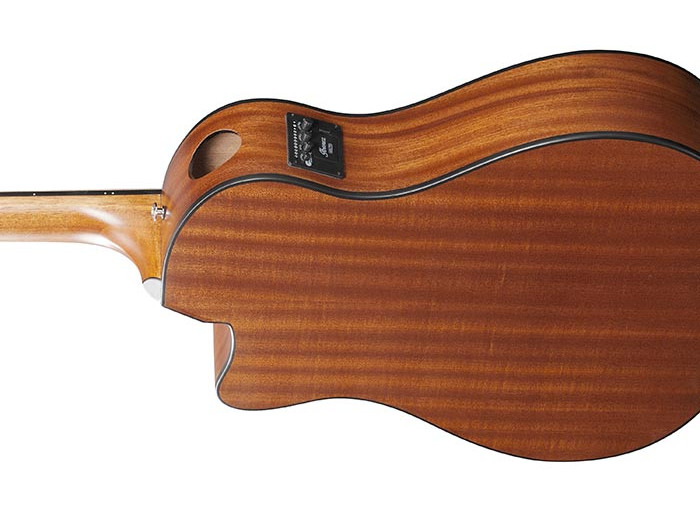

preamp Ibanez AEQ-TP2 preamp w/Onboard tuner
output jack Balanced XLR & 1/4" outputs
battery 9V x1
NECK DIMENSIONS
Scale : 634mm/25"
a : Width 43mm at NUT
b : Width 55mm at 14F
c : Thickness 21mm at 1F
d : Thickness 22mm at 7F
Radius : 400mmR
BODY DIMENSIONS
a : Length 19 1/2"
b : Width 15 3/8"
c : Max Depth 4 3/16"
