body shape AE (Shallower body depth) body
bracing X-M Bracing
top Solid Okoume top
back & sides Okoume back & Okoume sides
neck Comfort GripNyatoh neck
fretboard Laurel fretboard
bridge Laurel Scalloped bridge
inlay Specially designed inlay
soundhole rosette Abalone

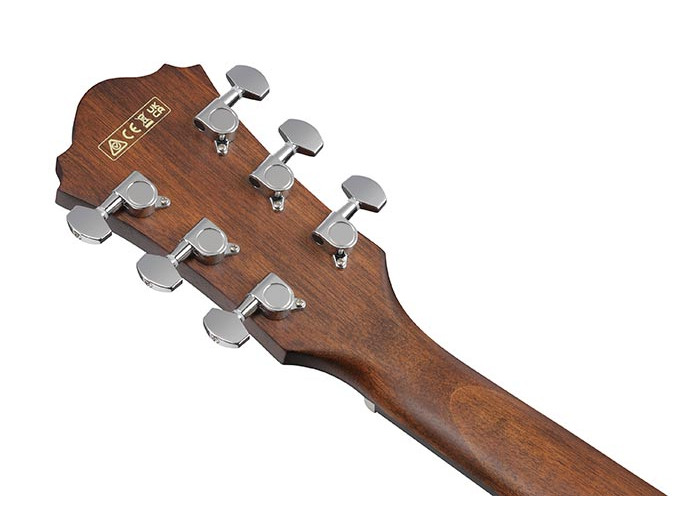

tuning machine Chrome Die-cast tuners (18:1 gear ratio)
number of frets 20
bridge pins Ibanez Advantage™
strings D'Addario® XTAPB1253
string gauge .012/.016/.024/.032/.042/.053
string space 11mm
factory tuning 1E,2B,3G,4D,5A,6E
pickup Ibanez T-bar Undersaddle
preamp Ibanez AEQ-TP2 preamp w/Onboard tuner
output jack Balanced XLR & 1/4" outputs
battery 9V x1
NECK DIMENSIONS
Scale : 634mm/25"
a : Width 43mm at NUT
b : Width 54.33mm at 14F
c : Thickness 20mm at 1F
d : Thickness 21mm at 7F
Radius : 400mmR
BODY DIMENSIONS
a : Length 20 1/8"
b : Width 16 1/4"
c : Max Depth 4 1/2
