Wireless Microphone System

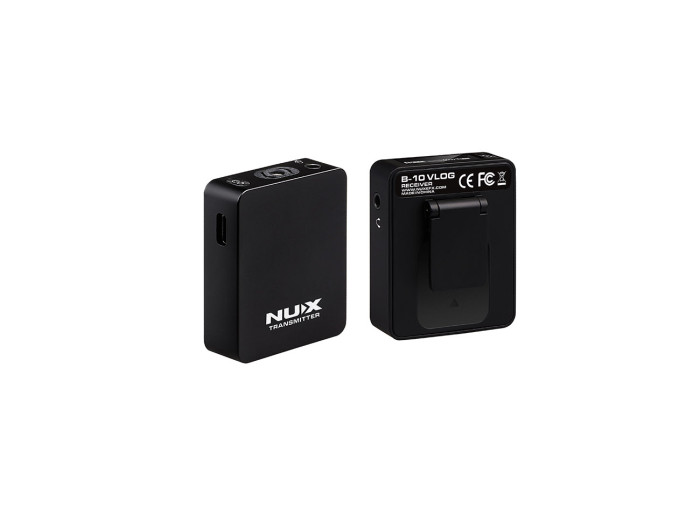

NUX B-10 Vlog is a compact and lightweight wireless microphone system, consisting of a receiver and a transmitter, which can achieve a wireless distance of up to 30 meters. NUX B-10 can provide a stable wireless connection, record high-quality, low-noise, low-latency audio. It’s compatible with most existing cameras/mobile phones/tablets. And it’s a solution for Vlog shooting, product evaluation, event speeches, live broadcasts and web conferences.
Included Accessories

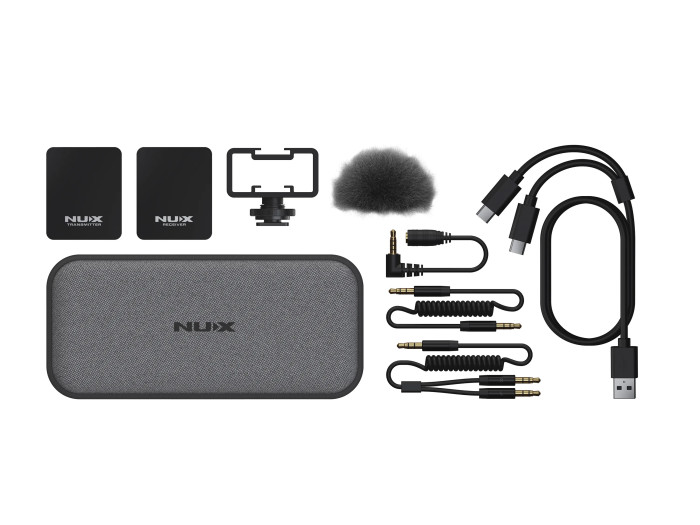

1 x fur windshield, 1 x USB-C Y-cable, 1 x TRS(female) to TRRS(male) adaptor cable for Mobile Phone(CTIA), 1 x 3.5mm TRS cable for RX to Camera, 1x 3.5mm TRS Y-cable for 2 RXs to Camera, 1 x Cold-shoe RX mount
Specifications
Operating Frequency Band
2.4 GHz
Operation Length
< 100 feet (30m)
Sampling Rate
24bit / 44.1 kHz
Frequency Response
50Hz-20kHz
Latency
< 5ms
Dynamic Range
96dB
THD+ Noise
<0.2%@1 kHz
Built-in Battery Capacity (TX & RX)
400mAh/3.7V
Maximum Input Level(3.5mm TRS)
100mVrms(-20dBV)
Battery Running Time
4 hours for TX,6 hours for RX
Microphone on TX
Omnidirectional Electret Condenser Microphone
Maximum Sound Pressure Level
110dB SPL
Dimensions(TX/RX)
51 mm(L) × 42mm(W) x 13mm(H)
Weight(TX/RX)
each 28g
Included Accessories1
1 x fur windshield, 1 x USB-C Y-cable, 1 x TRS(female) to TRRS(male) adaptor cable for Mobile Phone(CTIA)
Included Accessories2
1 x 3.5mm TRS cable for RX to Camera, 1x 3.5mm TRS Y-cable for 2 RXs to Camera, 1 x Cold-shoe RX mount
