The anchor under the spotlight
Based on the principle of emphasizing the operation suited for live performance, the GP-200 has leveled up both inside and out drastically to fit the role of your ideal stage partner.
Upgraded effects library, you want it, you got it
Implementing the HD digital modeling technology accumulated throughout years of the Valeton team's diligent efforts, the GP-200 delivers hundreds of editions of tones from world-classic amplifiers and stompboxes with a comprehensively upgraded algorithm. Combining 140 legendary amplifiers and cabinets simulations and 100 renowned stompbox effect pedals, plus 20 factory cab IR slots, the GP-200 will guarantee your consistently great sound on stage.
Customizable footswitches
Concluding 3 modes, up to 8 colorful footswitches can be willfully assigned functions. Notice that we designed specific protection for the upper row footswitches to prevent accidental activations.
Witness the operation wildly flow
The module buttons provide fast on/off to the corresponding effect modules; amp knobs offer straightforward visual presentations; customizable quick access knobs bring plenty of space for every patch's micro-adjustment. Up to 25 knobs and buttons will accordingly follow their own commands to ensure details are delivered.
Watch the pedal gently glow
By applying optical sensor technology, this beautifully crafted expression pedal comes with an exceptionally smooth and sensitive touch. Able to control multiple effect parameters, this pedal dynamically lightens up your inspiration for songwriting and jamming when creating your tones.

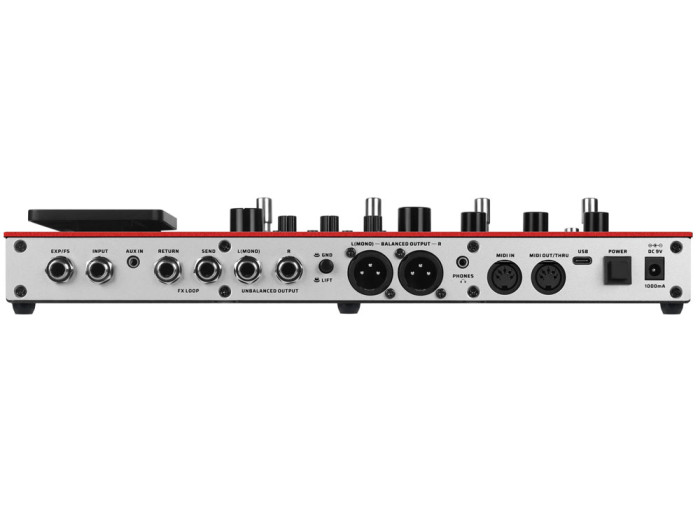

Diverse I/O jacks, diverse scenarios
- 1/4″ TS instrument input
- 2* Unbalanced 1/4″TS outputs
- 2* Balanced XLR outputs
- 1/4″ Unbalanced FX LOOP I/O for connecting other gears
- 1/8″ headphone output
- Stereo 1/8″ Aux Input
- Standard 5-pin midi IN/OUT (THRU) jacks for further control expansion
- 1/4″ TRS EXP/FS jack
FEATURES
● HD modeling technology carried by the new digital platform delivering more organic tones
● 24-bit 44.1kHz audio conversion
● Over 240 high-quality effects
● 140+ legendary guitar/bass/acoustic amps, cabinets
● 100+ dynamic/distortion/frequency/modulation/delay/reverb effects
● Supporting 20 user IRs storage
● 256 patch slots (100 factory, 156user)
● Up to 11 freely movable modules in the effect chain able to work simultaneously
● 180-second looper
● 100 high-quality drum patterns
● Sensitive built-in chromatic tuner
● 4.3-inch TFT LCD presents an intuitive, user-friendly multi-language UI
● 8 customizable LED footswitches with 3 footswitches templates, applicable for various situations
● Built-in expression pedal controlling up to 3 effect parameters
● Numerous button and knob shortcuts bringing efficiency home
● Diverse I/Os matching with diverse needs
● USB Type-C connection audio interface compatible with Win/Mac/iOS/Android systems
● 6-in/4-out USB Audio, supporting loopback and more convenience for re-amping
● Intuitive Win/Mac editor
● Rugged cast metal chassis
● DC 9V power supply
Specifications
A/D/A Converter: 24-bit high performance audio
Sampling Frequency: 44.1 kHz
SNR: 110dB
Module: 11, can be used simultaneously
Patch Memory: 256 Patch slots, 100 Factory Patches
Looper: 180 seconds of record time
Drum Machine: 100 Patterns
MIDI (IN/OUT/THRU): 5-pin MIDI connectors
Analog Input Connections
Guitar Input: 1/4″ Unbalanced (TS)
Input Impedance: 4.7M Ohms (A.GT), 1M Ohms (E.GT), 10k Ohms (Line)
Return Input: 1/4″ Unbalanced (TS)
Return Input Impedance: 100k Ohms
Aux Input: 1/8″ Stereo (TRS)
Aux Input Impedance: 10k Ohms
Analog Output Connections
L/R Unbalanced Outputs: 1/4″ TS jacks
L/R Unbalanced Output Impedance: 1k Ohms
L/R Balanced Outputs: XLR jacks
L/R Output Impedance: 1k Ohms
Send Output: 1/4″ Unbalanced (TS)
Send Output Impedance: 1k Ohms
Headphone Output: 1/8″ Stereo (TRS)
Headphone Output Impedance: 22 Ohms
Digital Connections
USB Port: USB 2.0 Type-C Port
USB Recording Specification
Sample Rate: 44.1 kHz Bit
Depth: Supports 16-bit or 24-bit
Size and weight
Dimensions: 345mm(W) x 220mm(D) x 62.5mm(H)
Unit weight: 2.37 kg
Power
Power Requirements: DC 9V, 1000mA, center negative
